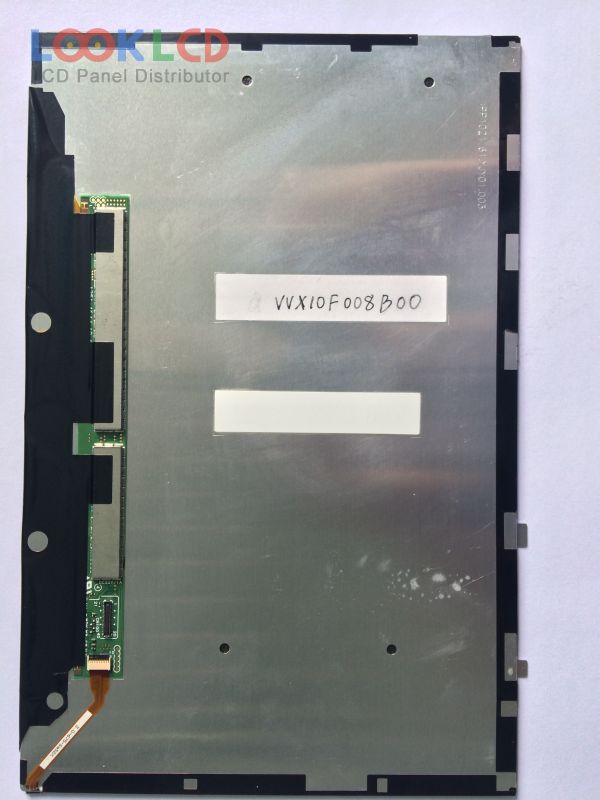

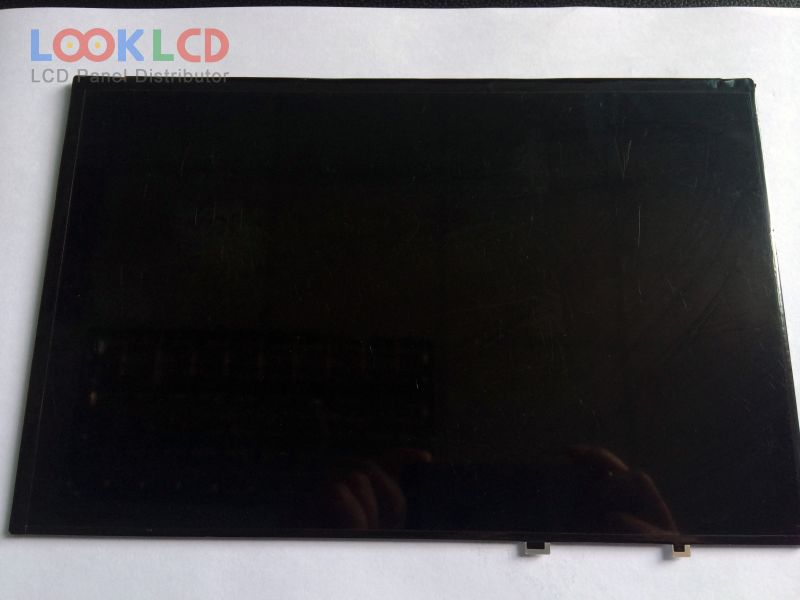

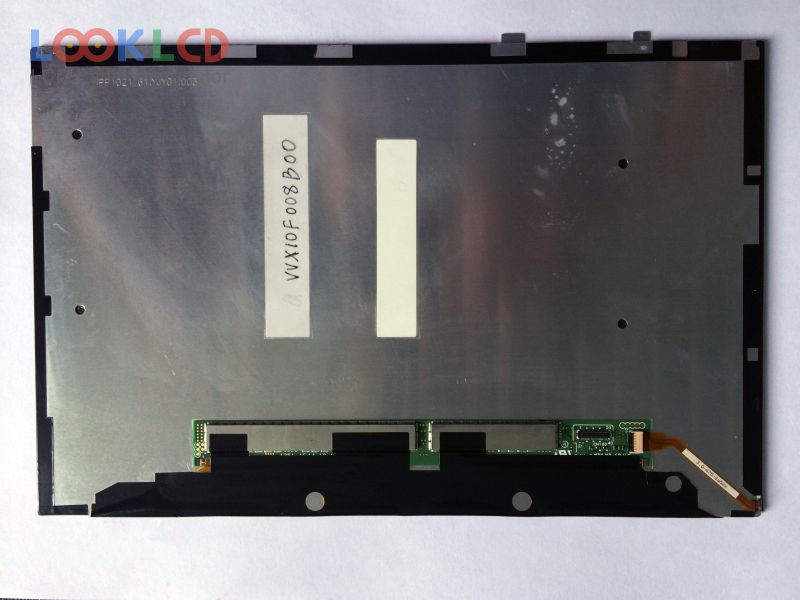

| PartNumber | VVX10F008B00 |
| Značka | Panasonic |
| Velikost | 10.1 |
| aplikace | PAD |
| Rozlišení | 1920×1200 |
| Složení | LCM |
| Jas | 385 |
| CR | 900:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | Panasonic |
| panelový model | VVX10F008B00 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1920(RGB)×1200 , WUXGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 217.44×135.9 mm |
| obrys | 228.96×148.14×4.29 mm |
| povrch | Hard coating |
| jas | 385 cd/m² (Typ.) |
| kontrastní poměr | 900:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193174% |
| Doba odezvy | 30 (Max.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 8S6PWLEDWithout Driver |
| signálové rozhraní | MIPI (4 data lanes), 40 pins |
| vstupní napětí | 3.7V (Typ.) |
| aplikace | PAD |
