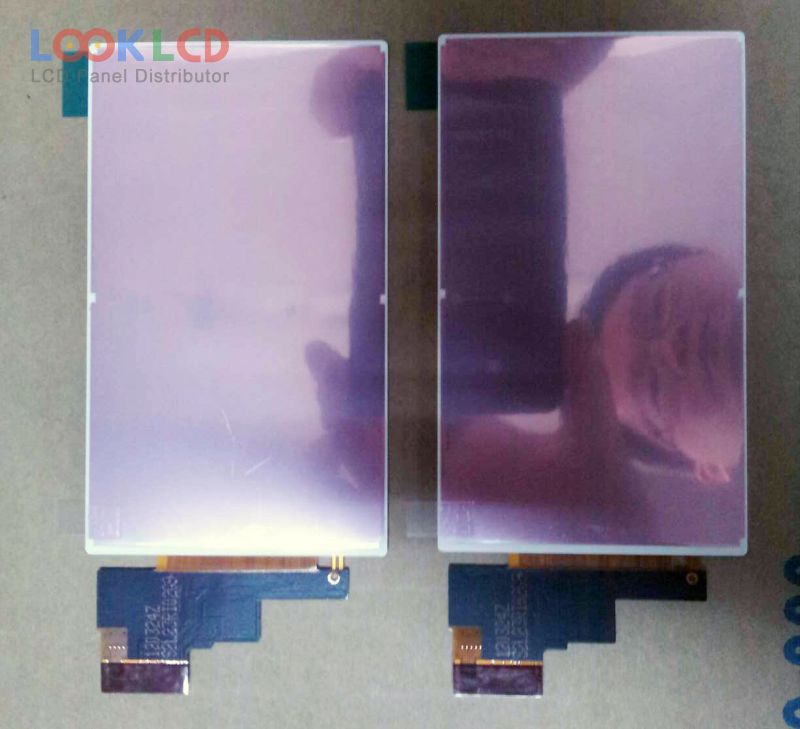

| PartNumber | H380VW01 V2 |
| Značka | AUO |
| Velikost | 3.8 |
| aplikace | MPH |
| Rozlišení | 480×800 |
| Složení | LCM |
| Jas | 450 |
| CR | 700:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | H380VW01 V2 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.8 inch |
| rozlišení | 480(RGB)×800 , WVGA |
| zobrazovací mód | AHVA, Normally Black, Transmissive |
| aktivní oblast | 49.68×82.8 mm |
| obrys | 53.94×116.49 mm |
| povrch | |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 700:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193170% |
| Doba odezvy | 20/15 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4S2PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit) + SPI, 60 pins |
| vstupní napětí | 1.8/3.0V (Typ.)(IOVDD/AVDD) |
| aplikace | MPH |
