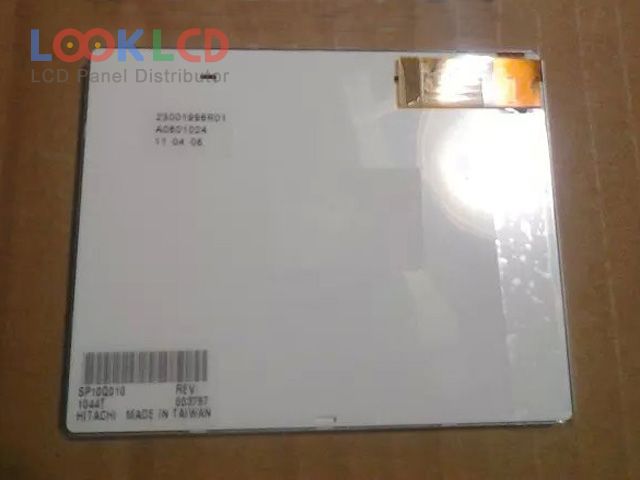

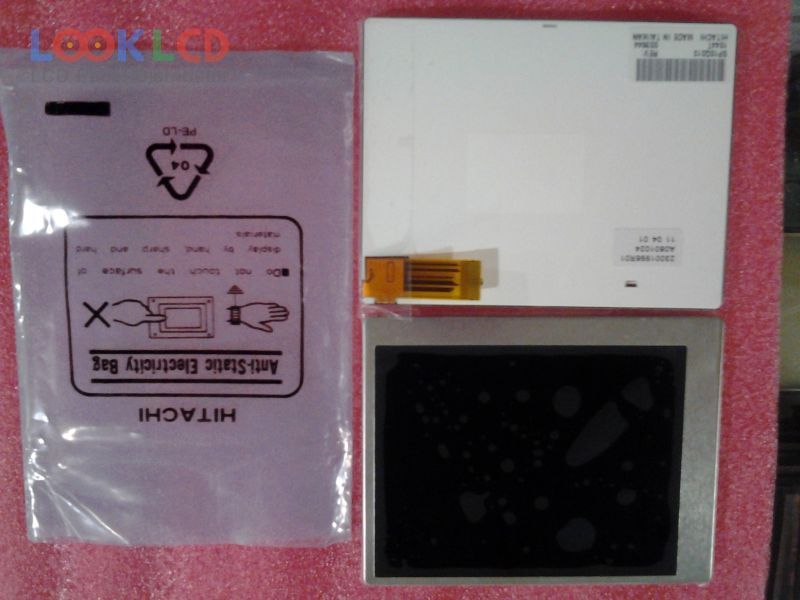

| PartNumber | SP10Q010 |
| Značka | KOE |
| Velikost | 3.8 |
| aplikace | IA |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 110 |
| CR | 20:1 |
| Barvy | Monochrome |
| Podsvícení | WLED |
| Rozhraní | Parallel Data |
| značka panelu | KOE |
| panelový model | SP10Q010 |
| typ panelu | FSTN-LCD , LCM |
| velikost panelu | 3.8 inch |
| rozlišení | 320×240 , QVGA |
| zobrazovací mód | STN, Black/White (Negative), Transmissive |
| aktivní oblast | 76.79×57.59 mm |
| obrys | 94.7×73.3×6 mm |
| povrch | Glare (Haze 0%) |
| jas | 110 cd/m² (Typ.) |
| kontrastní poměr | 20:1 (Typ.) |
| zobrazit barvy | Monochrome |
| Doba odezvy | 150/350 (Typ.)(Tr/Td) |
| úhel pohledu | 80 (Typ.)(CR≥2, Φ2-Φ1)(L/R/U/D) |
| frekvence | 75Hz |
| typ lampy | 1S6PWLEDWithout Driver |
| signálové rozhraní | Parallel Data (4-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
