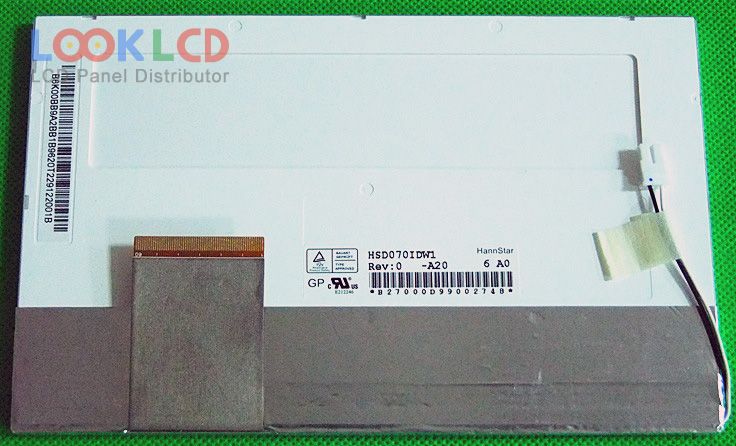

| PartNumber | HSD070IDW1-A20 |
| Značka | HannStar |
| Velikost | 7.0 |
| aplikace | DPF |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 200 |
| CR | 500:1 |
| Barvy | 262K/16.2M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | HannStar |
| panelový model | HSD070IDW1-A20 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 153.6×86.64 mm |
| obrys | 165×104×5.4 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K/16.2M (6-bit / 6-bit + FRC) |
| Doba odezvy | 5/20 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 3S7PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 6/8-bit), 60 pins |
| vstupní napětí | 3.0/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikace | DPF |
