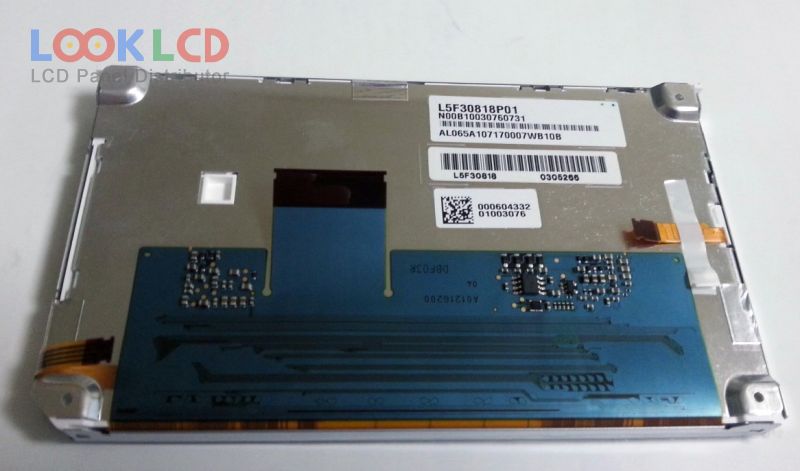

| PartNumber | L5F30818P01 |
| Značka | Epson |
| Velikost | 6.5 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 850 |
| CR | 700:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | Epson |
| panelový model | L5F30818P01 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 6.5 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | Normally Black, Transmissive |
| aktivní oblast | 144×78.24 mm |
| obrys | 159.9×93.4 mm |
| povrch | |
| jas | 850 cd/m² (Typ.) |
| kontrastní poměr | 700:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥100)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 5S4PWLEDWithout Driver |
| signálové rozhraní | CMOS (1 ch, 6-bit) + SPI, 50 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | CNS |
| L5F30614T23 | SANYO | 8.0 | 800×480 |
| L5F30614T64 | SANYO | 8.0 | 800×480 |
| L5F30614T65 | SANYO | 8.0 | 800×480 |
| L5F30705T10 | Epson | 5.0 | 400×240 |
| L5F30812P00 | Epson | 13.3 | 1024×768 |
| L5F30818P01 | Epson | 6.5 | 800×480 |
| L5F30818P03 | SONY | 6.5 | 800×480 |
| L5F30818P04 | SONY | 6.5 | 800×480 |
| L5F30947T00 | Epson | 6.5 | 800×480 |
| L5F30947T0A | Epson | 6.5 | 800×480 |
| 70WVW2A | SII | 7.0 | 800×480 |
| C030DW01 V0 | AUO | 3.0 | 320×240 |
| G121S1-L02 | Innolux | 12.1 | 800×600 |
| G121X1-L04 | Innolux | 12.1 | 1024×768 |
| L5S30883P00 | SANYO | 4.5 | 480×240 |
| LQ050A5BS01 | SHARP | 5.0 | 320×234 |
| LQ064A5CG01 | SHARP | 6.4 | 480×234 |
| LQ080Y5DR01 | SHARP | 8.0 | 800×480 |
| LQ080Y5DW30 | SHARP | 8.0 | 800×480 |
| TM062RDH03 | Tianma | 6.2 | 800×480 |
