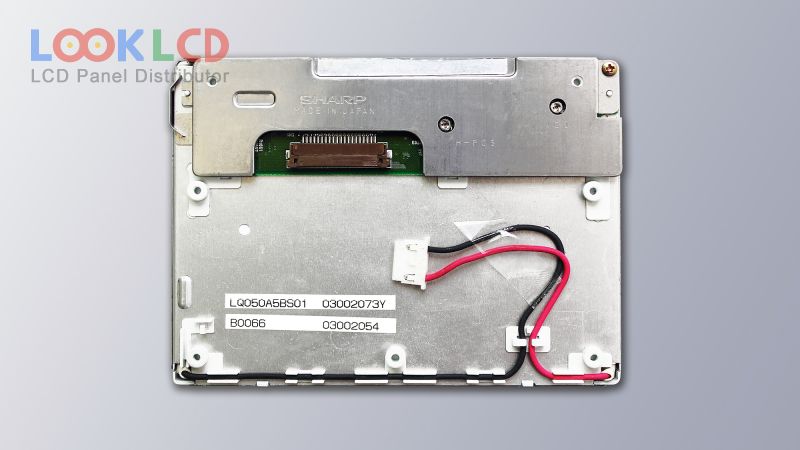

| PartNumber | LQ050A5BS01 |
| Značka | SHARP |
| Velikost | 5.0 |
| aplikace | CNS |
| Rozlišení | 320×234 |
| Složení | LCM |
| Jas | 320 |
| CR | 60:1 |
| Barvy | Full color |
| Podsvícení | CCFL |
| Rozhraní | Analog |
| značka panelu | SHARP |
| panelový model | LQ050A5BS01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.0 inch |
| rozlišení | 320(RGB)×234 |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 102.2×74.8 mm |
| obrys | 119.4×89×12.5 mm |
| povrch | |
| jas | 320 cd/m² (Typ.) |
| kontrastní poměr | 60:1 (Min.) |
| zobrazit barvy | Full color |
| Doba odezvy | 30/50 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/10/30 (Min.)(CR≥10)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Analog RGB + Composite Video (NTSC/PAL), 20 pins |
| vstupní napětí | 5.3/13.0/-16.0V (Typ.)(VSH/VGH/VGL) |
| aplikace | CNS |
