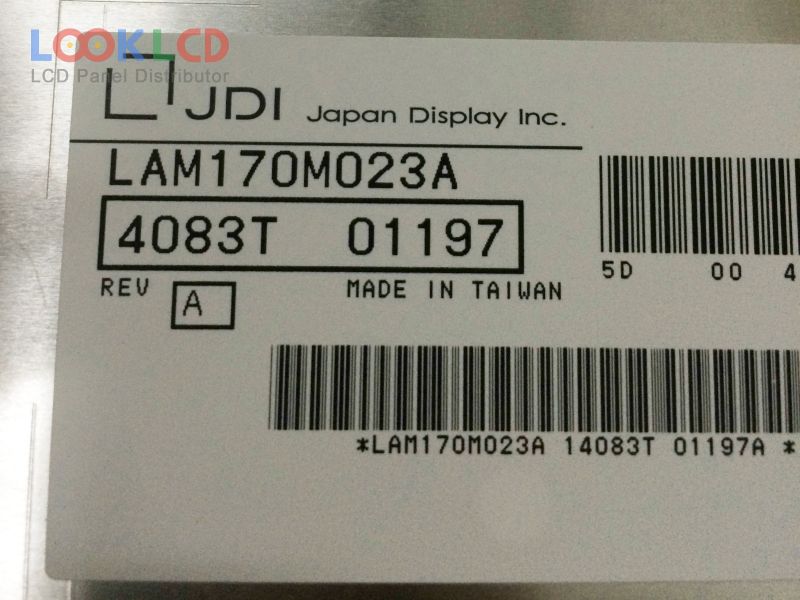

| PartNumber | LAM170M023A |
| Značka | JDI |
| Velikost | 17.0 |
| aplikace | MD |
| Rozlišení | 1280×1024 |
| Složení | LCM |
| Jas | 240 |
| CR | 900:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | JDI |
| panelový model | LAM170M023A |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 17.0 inch |
| rozlišení | 1280(RGB)×1024 , SXGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 337.92×270.336 mm |
| obrys | 368×306×20.4 mm |
| povrch | Antiglare, Hard coating (2H) |
| jas | 240 cd/m² (Typ.) |
| kontrastní poměr | 900:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193174% |
| Doba odezvy | 10/12 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3 stringsWLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | MD |
