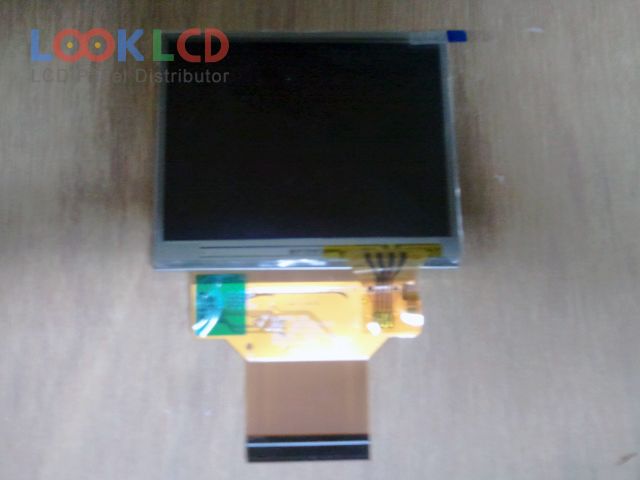

| PartNumber | LB035Q02-TD01 |
| Značka | LG Display |
| Velikost | 3.5 |
| aplikace | PND |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 300 |
| CR | 400:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | Parallel/Serial |
| značka panelu | LG.Philips LCD |
| panelový model | LB035Q02-TD01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 70.08×52.56 mm |
| obrys | 76.9×63.9×4.45 mm |
| povrch | Clear, Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 16.7M |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 6S1PWLED |
| signálové rozhraní | Digital RGB (8/18/24-bit) + SPI, 60 pins |
| vstupní napětí | 3.3/13/-9V (Typ.)(VCI/VGH/VGL) |
| rohs: | |
| aplikace | PND |
