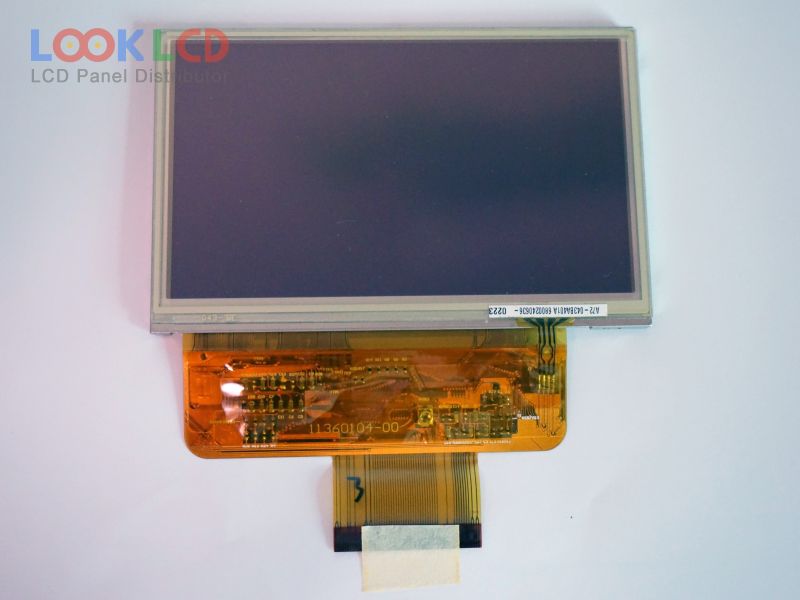

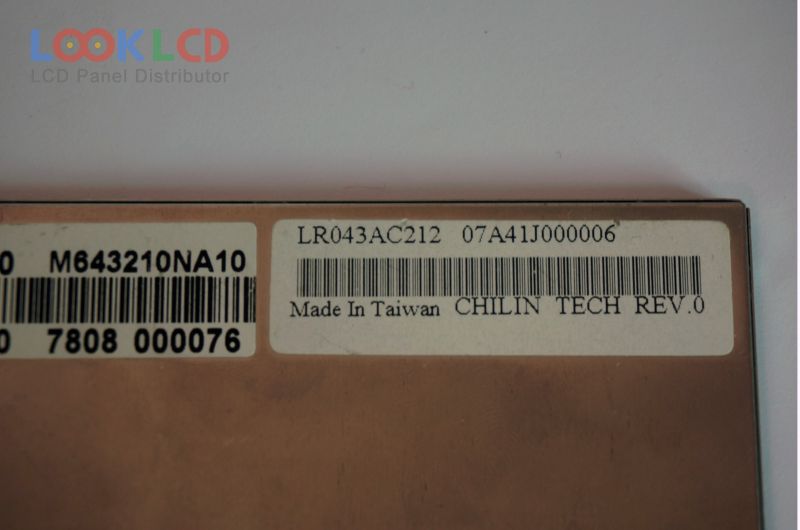

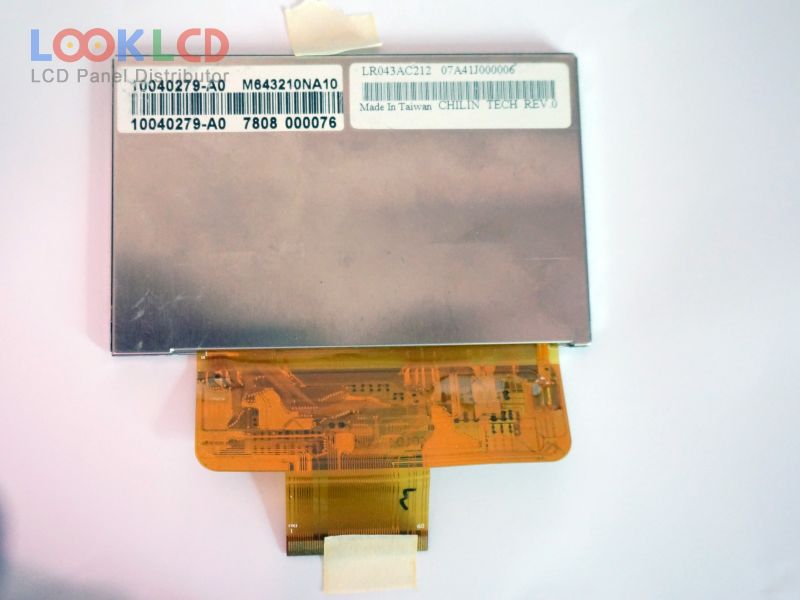

| PartNumber | LR043AC212 |
| Značka | Innolux |
| Velikost | 4.3 |
| aplikace | PND |
| Rozlišení | 480×272 |
| Složení | LCM |
| Jas | 300 |
| CR | 400:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | Parallel/Serial |
| značka panelu | ChiHsin |
| panelový model | LR043AC212 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 480(RGB)×272 , WQVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 95.04×53.856 mm |
| obrys | 105.5×67.2 mm |
| povrch | Antiglare |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 16.7M |
| Doba odezvy | 15/35 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 7S1PWLEDWithout Driver |
| signálové rozhraní | Digital RGB (8/24-bit), 60 pins |
| vstupní napětí | 3/5.0V (Typ.)(DVDD/AVDD) |
| rohs: | |
| aplikace | PND |
