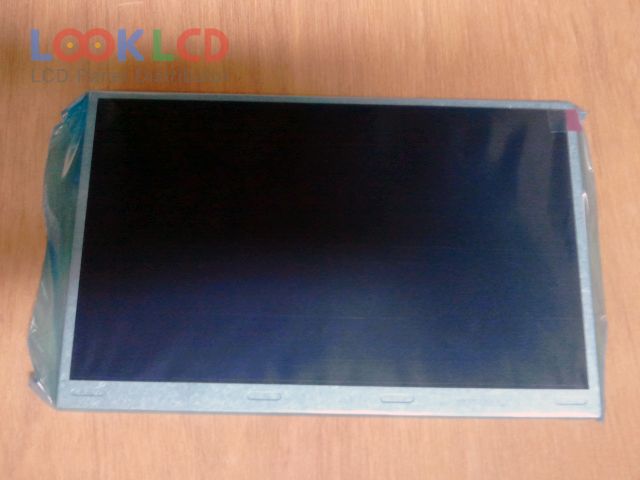

| PartNumber | LB070WV6-TD06 |
| Značka | LG Display |
| Velikost | 7.0 |
| aplikace | MP4 |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 350 |
| CR | 500:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | LG Display |
| panelový model | LB070WV6-TD06 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800×480(RGB) , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 151.44×90.576 mm |
| obrys | 165×104.6×3.6 mm |
| povrch | Antiglare |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 10/15 (Typ.)(Tr/Td) |
| úhel pohledu | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 7S3PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.)(VCC) |
| aplikace | MP4 |
