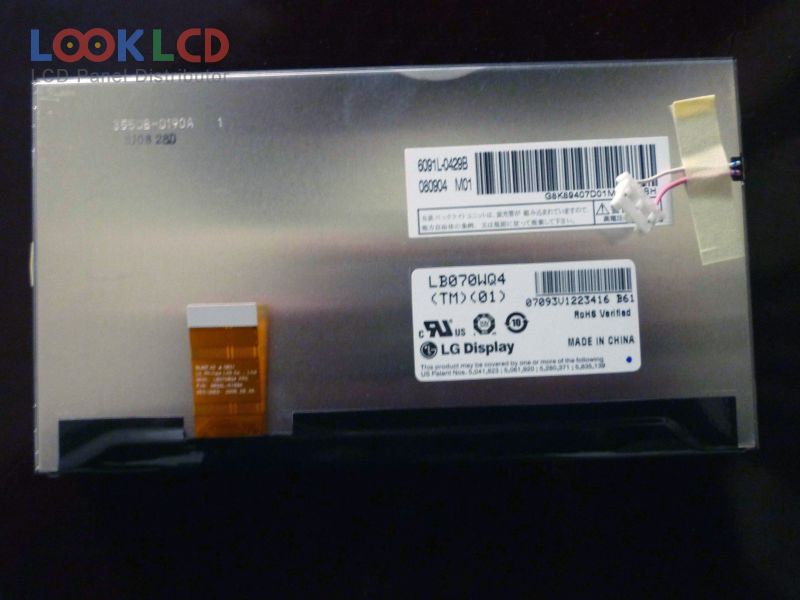

| PartNumber | LB070WQ4-TM01 |
| Značka | LG Display |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 480×234 |
| Složení | LCM |
| Jas | 450 |
| CR | 400:1 |
| Barvy | Full color |
| Podsvícení | CCFL |
| Rozhraní | Analog |
| značka panelu | LG.Philips LCD |
| panelový model | LB070WQ4-TM01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 480(RGB)×234 |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 156.24×82.368 mm |
| obrys | 167×93×7.8 mm |
| povrch | Antiglare |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | Full color , CIE193145% |
| Doba odezvy | 50/75 (Max.)(Tr/Td) |
| úhel pohledu | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | TFT Specific Analog RGB, 30 pins |
| vstupní napětí | 3.3/5.0/18.5/-12.0V (Typ.)(VDD1/VDD2/VGH/VGL) |
| aplikace | CNS |
