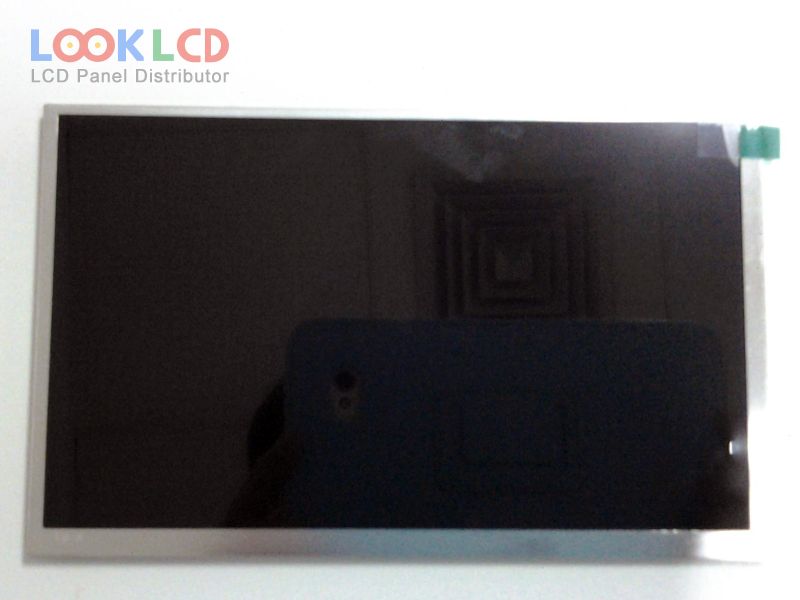

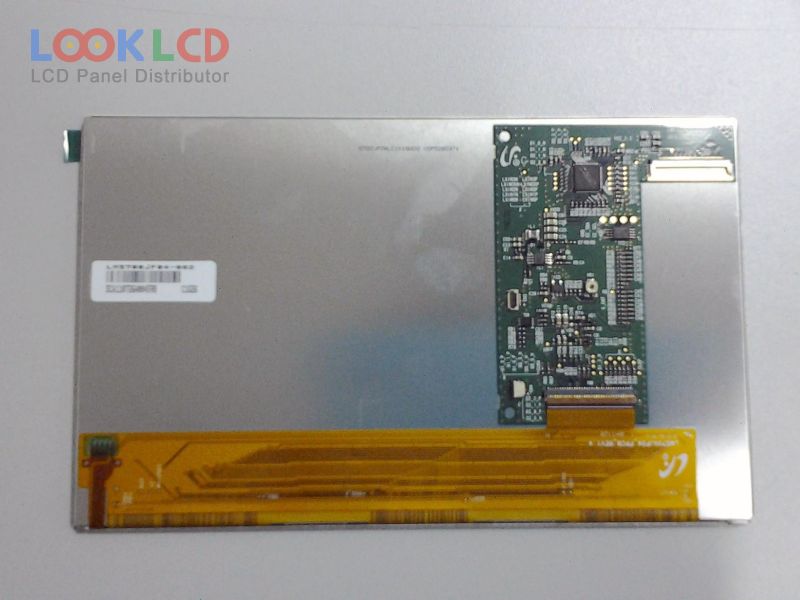

| PartNumber | LMS700JF04-0 |
| Značka | Samsung |
| Velikost | 7.0 |
| aplikace | MP4 |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 400 |
| CR | 700:1 |
| Barvy | 16.2M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | SAMSUNG SMD |
| panelový model | LMS700JF04-0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | mPVA, Normally Black, Transmissive |
| aktivní oblast | 153.6×90 mm |
| obrys | 164.95×101.75×4.82 mm |
| povrch | |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 700:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC), CIE193170% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 70Hz |
| typ lampy | 8S3PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | MP4 |
