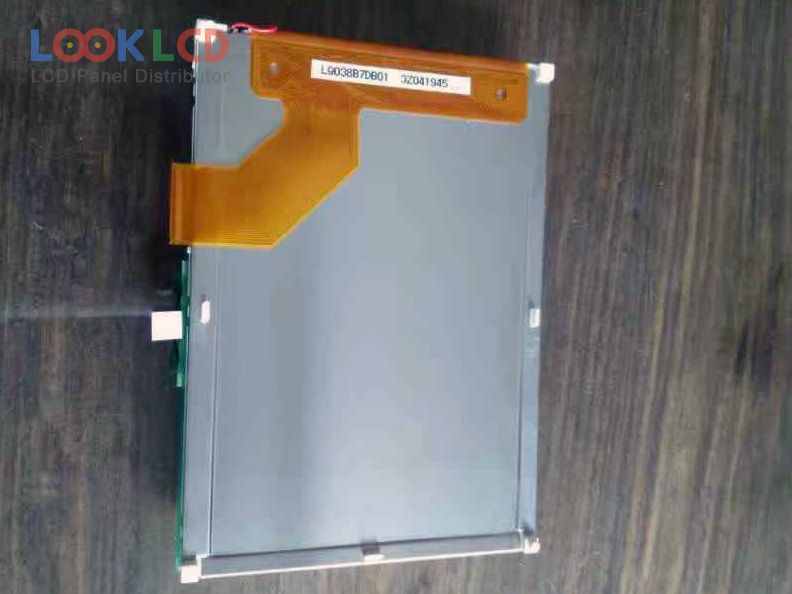

| PartNumber | LQ038B7DB01 |
| Značka | SHARP |
| Velikost | 3.8 |
| aplikace | HHP |
| Rozlišení | 320×480 |
| Složení | LCM |
| Jas | |
| CR | 60:1 |
| Barvy | 262K |
| Podsvícení | No B/L |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ038B7DB01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.8 inch |
| rozlišení | 320(RGB)×480 , HVGA |
| zobrazovací mód | TN, Normally White, Transflective |
| aktivní oblast | 52.8×79.2 mm |
| obrys | 64.9×92.3 mm |
| povrch | Clear, Hard coating |
| jas | |
| kontrastní poměr | 60:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 20/35 (Typ.)(Tr/Td) |
| úhel pohledu | 40/40/40/50 (Typ.)(CR≥2)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | No B/L |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 39 pins |
| vstupní napětí | 4.8/3.3/13.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
| aplikace | HHP |
