| PartNumber | TM038QV-67A02A |
| Značka | SANYO |
| Velikost | 3.8 |
| aplikace | PDA |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 28 |
| CR | |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |

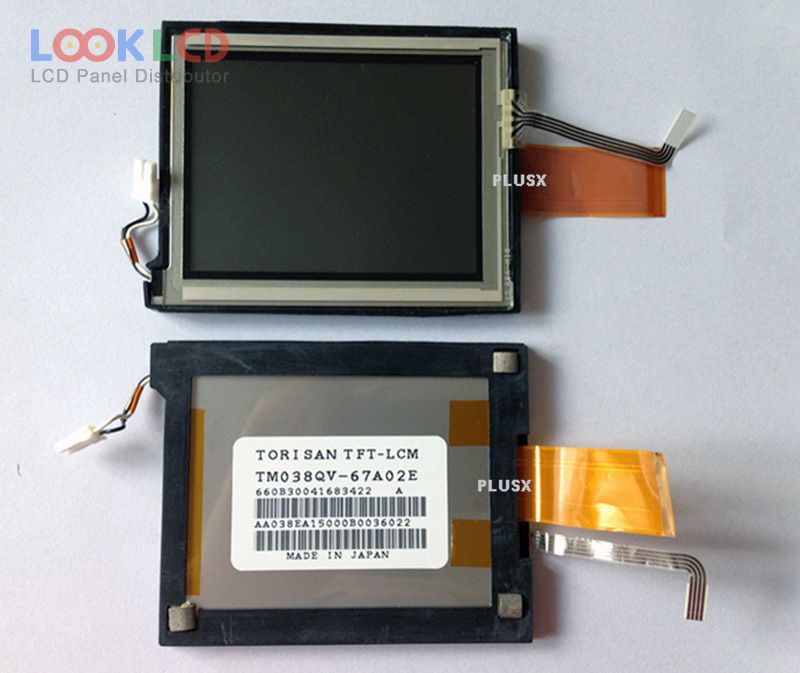

| značka panelu | TORISAN |
| panelový model | TM038QV-67A02A |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.8 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Reflective |
| aktivní oblast | 76.8×57.6 mm |
| obrys | 96.8×73 mm |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 28 cd/m² (Typ.) |
| kontrastní poměr | 7/17(Reflective) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 10/10 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/50/50 (Typ.)(CR≥2)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 60 pins |
| vstupní napětí | 3.3/5/15/-10V (Typ.)(VDD/VCC/VGH/VGL) |
| aplikace | PDA |
