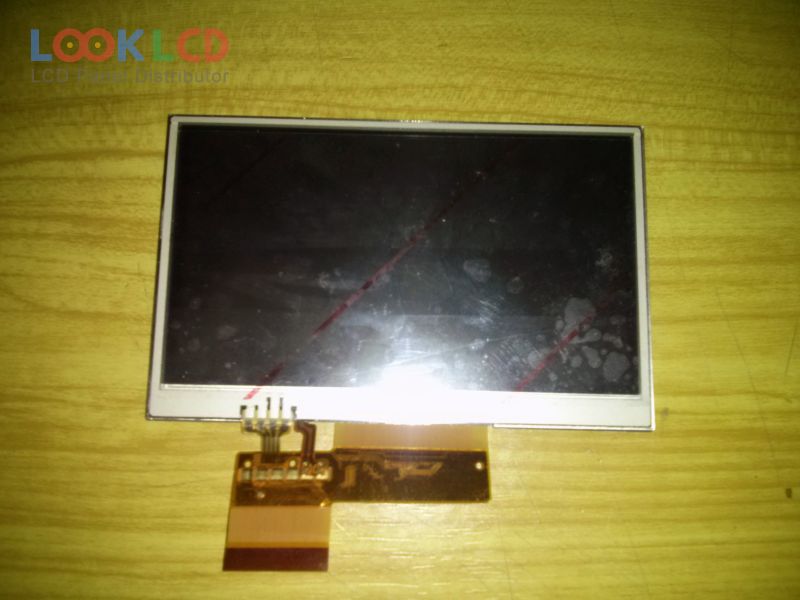

| PartNumber | LQ043T1DH01 |
| Značka | SHARP |
| Velikost | 4.3 |
| aplikace | PND |
| Rozlišení | 480×272 |
| Složení | LCM |
| Jas | 360 |
| CR | 300:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ043T1DH01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 480×272(RGB) , WQVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 95.04×53.86 mm |
| obrys | 105.5×67.2×5.3 mm |
| povrch | Antiglare, Hard coating (2H) |
| jas | 360 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193148% |
| Doba odezvy | 30/30 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/20/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 9S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| vstupní napětí | 1.8/3.3/2.8V (Typ.)(VDDIO/VCI) |
| aplikace | PND |
| LQ043T1DG03 | SHARP | 4.3 | 480×272 |
| LQ043T1DG04 | SHARP | 4.3 | 480×272 |
| LQ043T1DH04 | SHARP | 4.3 | 480×272 |
| LQ043T1DH42 | SHARP | 4.3 | 480×272 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| LQ043T3DX02 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0E | SHARP | 4.3 | 480×272 |
| LQ043T3DX0F | SHARP | 4.3 | 480×272 |
| LQ043Y1DX01B | SHARP | 4.3 | 480×800 |
| 37WVF0H | SII | 3.7 | 480×800 |
| A043FW02 V8 | AUO | 4.3 | 480×272 |
| A050FW02 V5 | AUO | 5.0 | 480×272 |
| AT050TN33 | Innolux | 5.0 | 480×272 |
| DLC0430LZG-6 | Other | 4.3 | 480×272 |
| LB043WQ1-TD01 | LG Display | 4.3 | 480×272 |
| LMS430HF20 | Samsung | 4.3 | 480×272 |
| LQ035Q1DG04 | SHARP | 3.5 | 320×240 |
| TM043NDH02 | Tianma | 4.3 | 480×272 |
| TM047NBH01 | Tianma | 4.7 | 480×272 |
