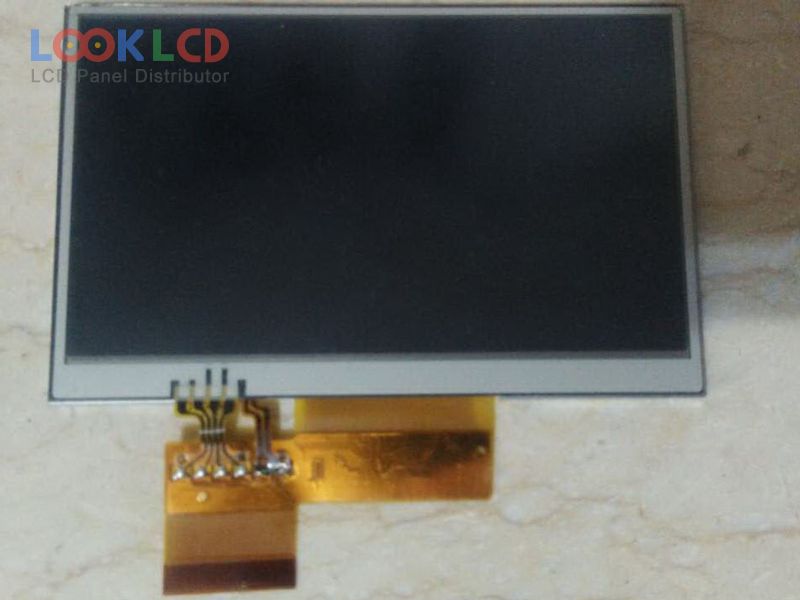

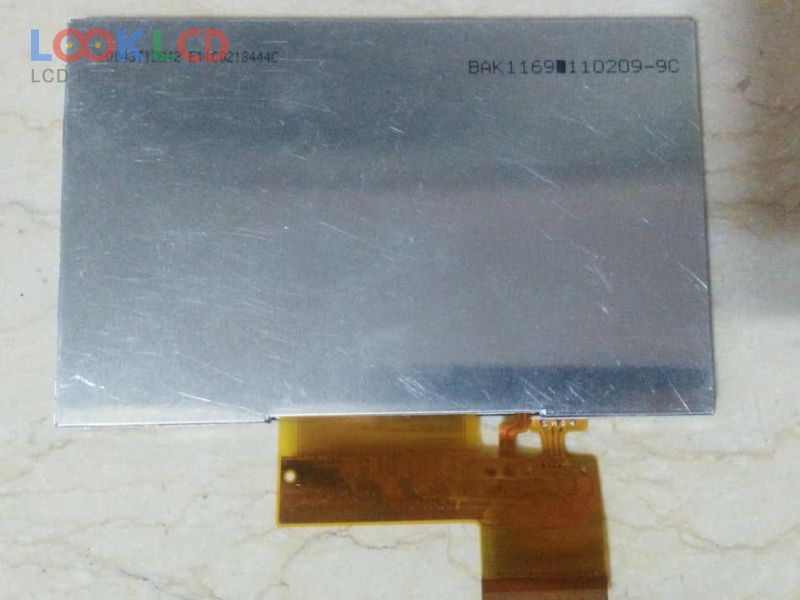

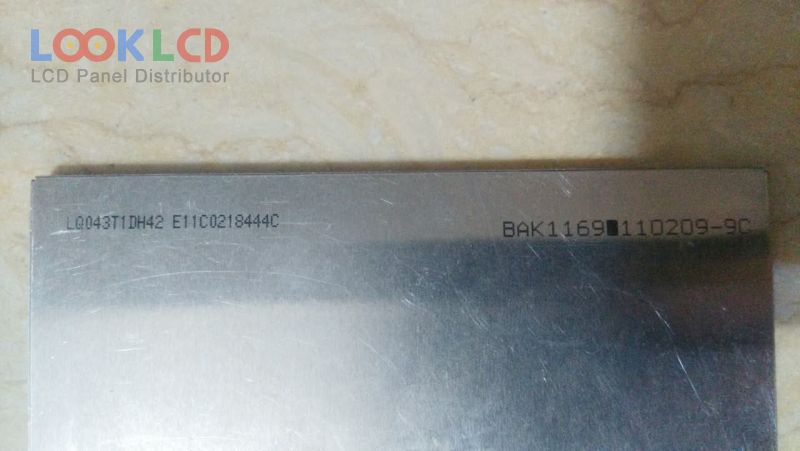

| PartNumber | LQ043T1DH42 |
| Značka | SHARP |
| Velikost | 4.3 |
| aplikace | PND |
| Rozlišení | 480×272 |
| Složení | LCM |
| Jas | 360 |
| CR | 300:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ043T1DH42 2 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 480×272(RGB) , WQVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 95.04×53.856 mm |
| obrys | 105.5×67.2×4.45 mm |
| povrch | Antiglare, Hard coating (2H) |
| jas | 360 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193148% |
| Doba odezvy | 8/8 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/20/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 9S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| vstupní napětí | 1.8/(3.3/2.8)V (Typ.)(VDDIO/VCI) |
| aplikace | PND |
| LQ043T1DG03 | SHARP | 4.3 | 480×272 |
| LQ043T1DG03B | SHARP | 4.3 | 480×272 |
| LQ043T1DG28 | SHARP | 4.3 | 480×272 |
| LQ043T1DH42 | SHARP | 4.3 | 480×272 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| LQ043T3DX02 | SHARP | 4.3 | 480×272 |
| LQ043T3DX04 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0E | SHARP | 4.3 | 480×272 |
| LQ043Y1DX01 | SHARP | 4.3 | 480×800 |
| LQ043Y1DX02 | SHARP | 4.3 | 480×800 |
| AT050TN34 | Innolux | 5.0 | 480×272 |
| LB035Q02-TD01 | LG Display | 3.5 | 320×240 |
| LMS430HF18 | Samsung | 4.3 | 480×272 |
| LMS480KC01 | Samsung | 4.8 | 800×480 |
| LMS480KC02 | Samsung | 4.8 | 800×480 |
| LQ043T3DX0E | SHARP | 4.3 | 480×272 |
| LR043JC211 | Innolux | 4.3 | 480×272 |
| LR430RC9001 | Innolux | 4.3 | 480×272 |
| TM050RDH03 | Tianma | 5.0 | 800×480 |
| TS047NAARB01-00 | Tianma | 4.7 | 480×272 |
