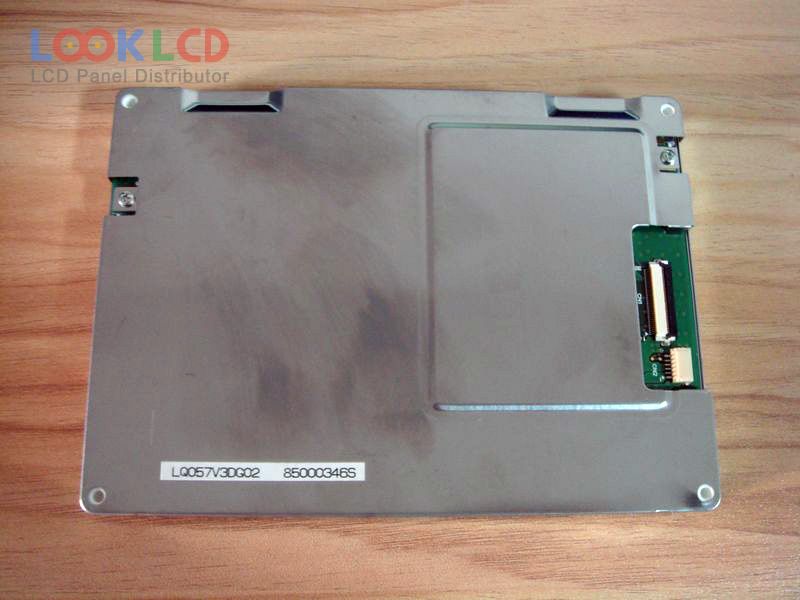

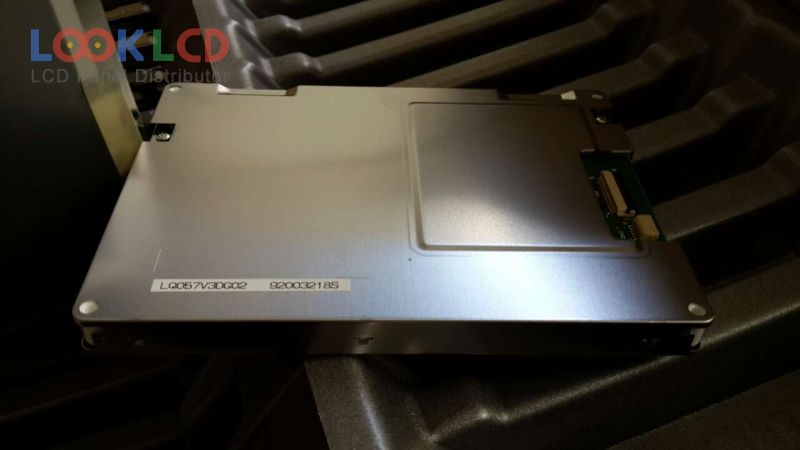

| PartNumber | LQ057V3DG02 |
| Značka | SHARP |
| Velikost | 5.7 |
| aplikace | IA |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 400 |
| CR | 600:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ057V3DG02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.7 inch |
| rozlišení | 640(RGB)×480 , VGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 115.2×86.4 mm |
| obrys | 144×104.6×13.5 mm |
| povrch | Antiglare |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 8/21 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/70 (Typ.)(CR≥5)(L/R/U/D) |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 33 pins |
| vstupní napětí | 3.3V (Typ.)(VCC) |
| aplikace | IA |
