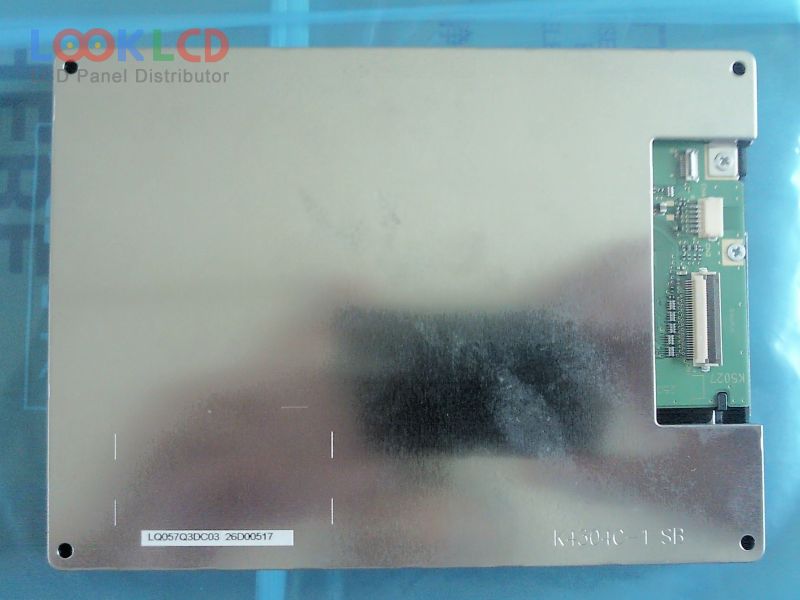

| PartNumber | LQ057Q3DC03 |
| Značka | SHARP |
| Velikost | 5.7 |
| aplikace | IA |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 500 |
| CR | 350:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ057Q3DC03 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.7 inch |
| rozlišení | 320×240(RGB) , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 115.2×86.4 mm |
| obrys | 144×104.6×12.8 mm |
| povrch | Glare (Haze 0%), Hard coating (2H) |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 350:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 33 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
