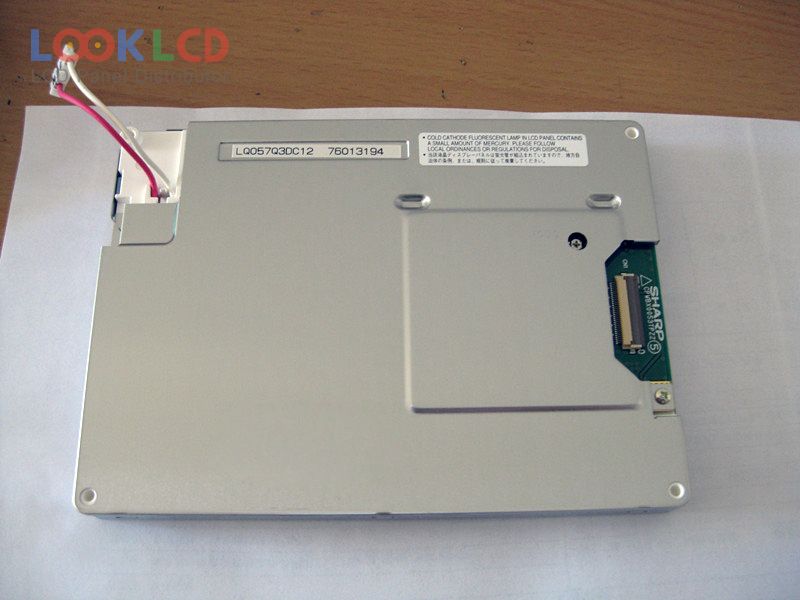

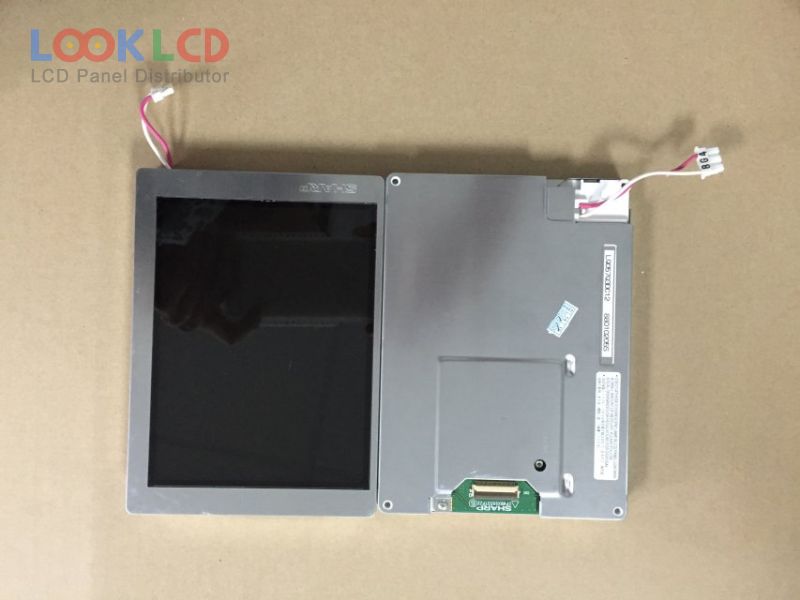

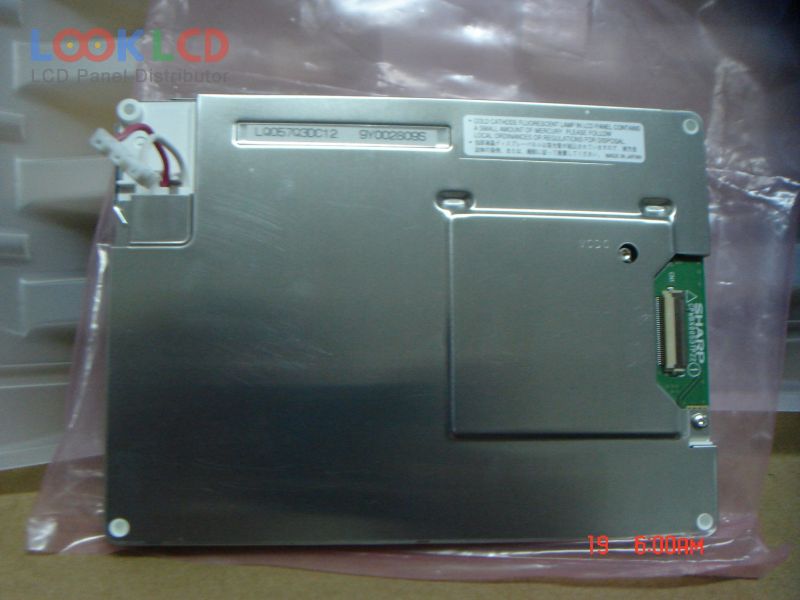

| PartNumber | LQ057Q3DC12 |
| Značka | SHARP |
| Velikost | 5.7 |
| aplikace | IA |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 500 |
| CR | 350:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ057Q3DC12 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.7 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 115.2×86.4 mm |
| obrys | 144×104.6×13.5 mm |
| povrch | Hard coating (3H) |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 350:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 8/21 (Typ.)(Tr/Td) |
| úhel pohledu | 65/65/65/40 (Typ.)(CR≥5)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 33 pins |
| vstupní napětí | 3.3V (Typ.)(VCC) |
| aplikace | IA |
| EL320.240.36 HB CCB | Lumineq | 5.7 | 320×240 |
| G057QN01 V2 | AUO | 5.7 | 320×240 |
| LQ057AC111 | Other | 5.7 | 320×240 |
| LQ057Q3DC02 | SHARP | 5.7 | 320×240 |
| LQ057Q3DC03 | SHARP | 5.7 | 320×240 |
| LQ057Q3DC12 | SHARP | 5.7 | 320×240 |
| LQ057Q3DG02 | SHARP | 5.7 | 320×240 |
| LQ057V3DG01 | SHARP | 5.7 | 640×480 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| LQ057V3LG11 | SHARP | 5.7 | 640×480 |
| G260J1-L05 | Innolux | 25.5 | 1920×1200 |
| HGS256641-Y-EH-LV | Other | 3.1 | 256×64 |
| LMBHAT014G16CKS | NAN YA | 5.4 | 240×128 |
| LQ085Y3DW01 | SHARP | 8.5 | 800×480 |
| LTD104C11S | TOSHIBA | 10.4 | 640×480 |
| NL6448AC33-18 | NLT | 10.4 | 640×480 |
| PM062HT1 | E Ink | 6.2 | 640×240 |
| RGS10128032WR006 | RiTdisplay | 1.0 | 128×32 |
| TM084SDHG03 | Tianma | 8.4 | 800×600 |
| UG-9616TLBBG01 | WiseChip | 0.84 | 96×16 |
