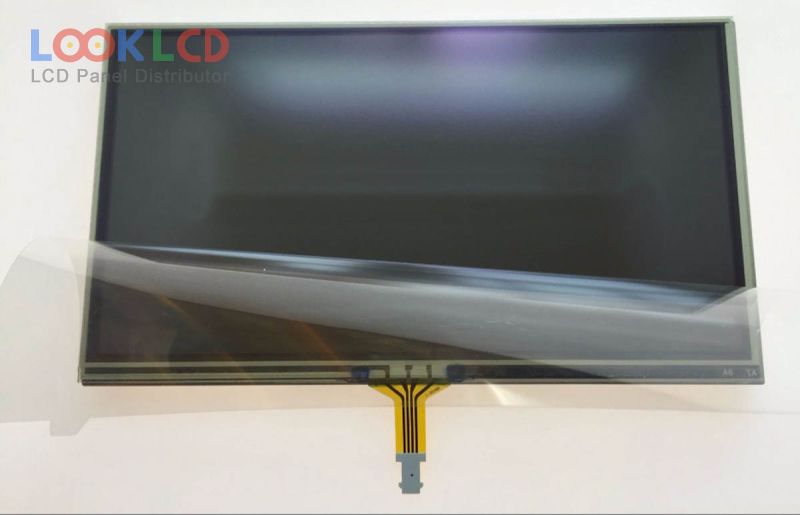

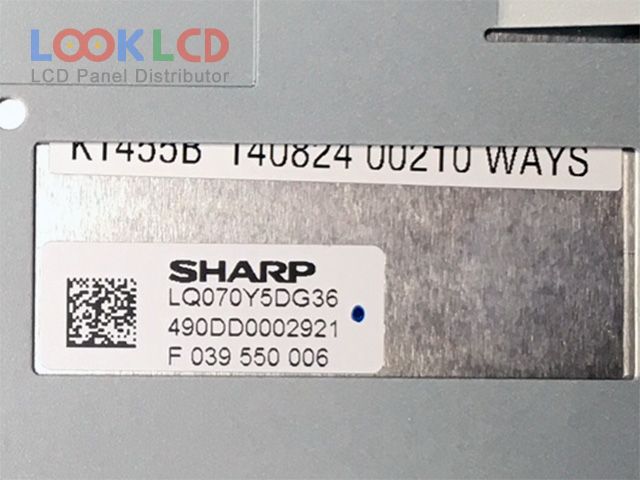

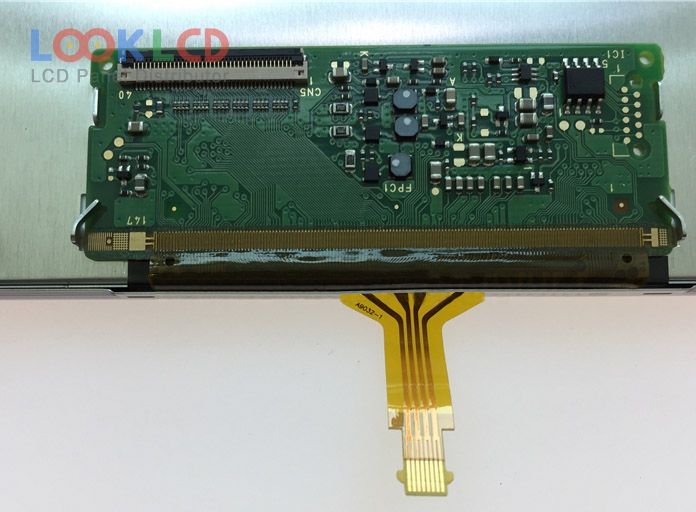

| PartNumber | LQ070Y5DG36 |
| Značka | SHARP |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 485 |
| CR | 150:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ070Y5DG36 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800×480(RGB) , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 156.4×82.08 mm |
| obrys | 165.2×92.4×11.06 mm |
| povrch | |
| jas | 485 cd/m² (Typ.) |
| kontrastní poměr | 150:1 (Min.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 20/30 (Typ.)(Tr/Td) |
| úhel pohledu | 65/65/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S4PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | CNS |
| LQ070M1SX01 | SHARP | 7.0 | 1200×1920 |
| LQ070S1DW01 | SHARP | 7.0 | 600×800 |
| LQ070T5DG30 | SHARP | 7.0 | |
| LQ070T5DR01 | SHARP | 7.0 | 480×240 |
| LQ070T5GC01 | SHARP | 7.0 | |
| LQ070Y3DG02 | SHARP | 7.0 | 800×480 |
| LQ070Y3DG04 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG01 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG11 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG36 | SHARP | 7.0 | 800×480 |
| A070VW01 V1 | AUO | 7.0 | 800×480 |
| AM-800480R3TMQW-B2H | AMPIRE | 7.0 | 800×480 |
| AT062TN12 | Innolux | 6.2 | |
| AT102TN03 V.3 | Innolux | 10.2 | 800×480 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| HSD062IDW1-A00 | HannStar | 6.2 | 800×480 |
| LA080WV3-SD01 | LG Display | 8.0 | 800×480 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LQ065Y5DG03 | SHARP | 6.5 | 800×480 |
