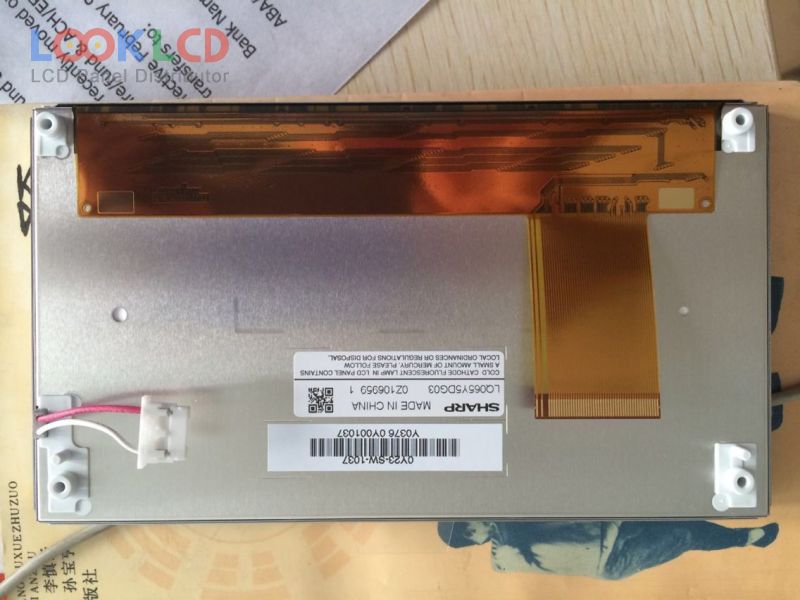

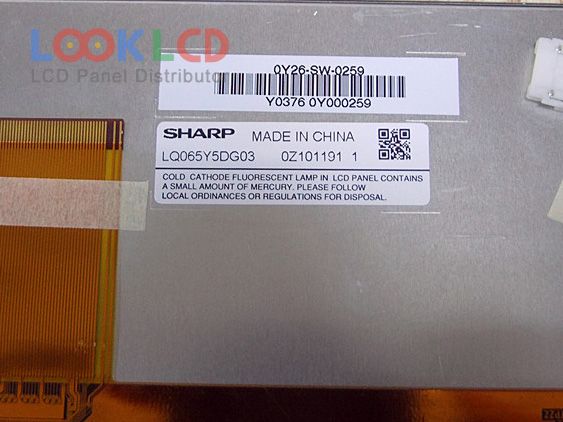

| PartNumber | LQ065Y5DG03 |
| Značka | SHARP |
| Velikost | 6.5 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 500 |
| CR | 300:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ065Y5DG03 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 6.5 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 144×79.24 mm |
| obrys | 157.4×89.7×12.6 mm |
| povrch | Antiglare, Antireflection |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 10/16 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/40/55 (Typ.)(CR≥5)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 50 pins |
| vstupní napětí | 5.3/3.3/15/-12V (Typ.)(VSHA/VSHD/VDD/VEEDC) |
| aplikace | CNS |
| LQ065T5AR05 | SHARP | 6.5 | 400×234 |
| LQ065T5BR08 | SHARP | 6.5 | 400×240 |
| LQ065T5DG05 | SHARP | 6.5 | 480×234 |
| LQ065T5DG30 | SHARP | 6.5 | 400×240 |
| LQ065T5GA01 | SHARP | 6.5 | 400×234 |
| LQ065T5GG63 | SHARP | 6.5 | 400×234 |
| LQ065T9BR54U | SHARP | 6.5 | 400×240 |
| LQ065T9DR52U | SHARP | 6.5 | 400×240 |
| LQ065Y5DG01 | SHARP | 6.5 | 800×480 |
| LQ065Y5DZ01 | SHARP | 6.5 | 800×480 |
| 70WVW2T | SII | 7.0 | 800×480 |
| C065GW03 V3 | AUO | 6.5 | 400×240 |
| C070VW04 V0 | AUO | 7.0 | 800×480 |
| C070VW04 VB | AUO | 7.0 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| DLC0700DDG-4 | Other | 7.0 | 800×480 |
| G121X1-L04 | Innolux | 12.1 | 1024×768 |
| HSD062IDW1-A02 | HannStar | 6.2 | 800×480 |
| LQ065Y5DG01 | SHARP | 6.5 | 800×480 |
| TFD65W30 | TOSHIBA | 6.5 | 400×234 |
