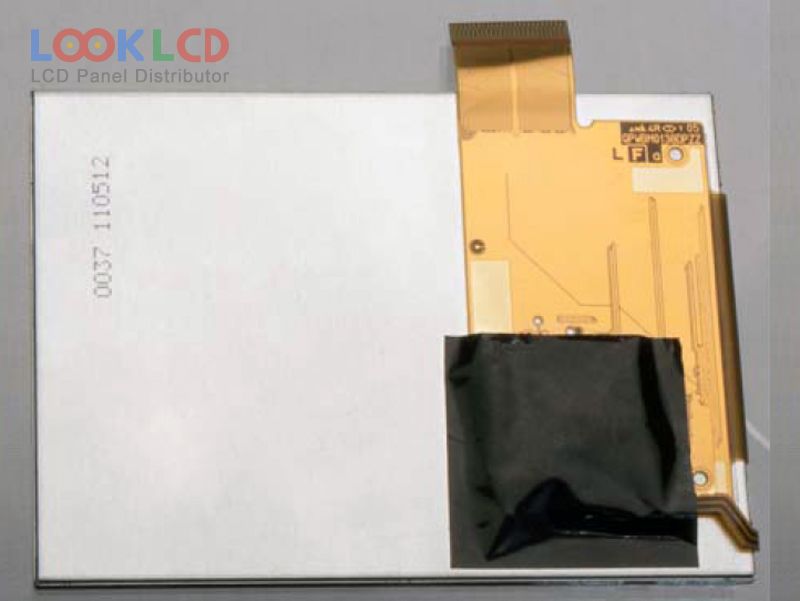

| PartNumber | LS037V7DW03A |
| Značka | SHARP |
| Velikost | 3.7 |
| aplikace | HHP |
| Rozlišení | 480×640 |
| Složení | LCM |
| Jas | 200 |
| CR | 200:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LS037V7DW03A 2 Compatible model |
| typ panelu | CG-Silicon , LCM |
| velikost panelu | 3.7 inch |
| rozlišení | 480(RGB)×640 , VGA |
| zobrazovací mód | ASV, Normally Black, Transflective |
| aktivní oblast | 56.16×74.88 mm |
| obrys | 65×89.2 mm |
| povrch | |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 200:1 (Typ.)(Transmissive)2:1 (Typ.)(Reflective) |
| zobrazit barvy | 262K (6-bit), CIE193135% |
| Doba odezvy | 15/20 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| typ lampy | 7S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 51 pins |
| vstupní napětí | 3.3V (Typ.)(VSHD) |
| aplikace | HHP |
