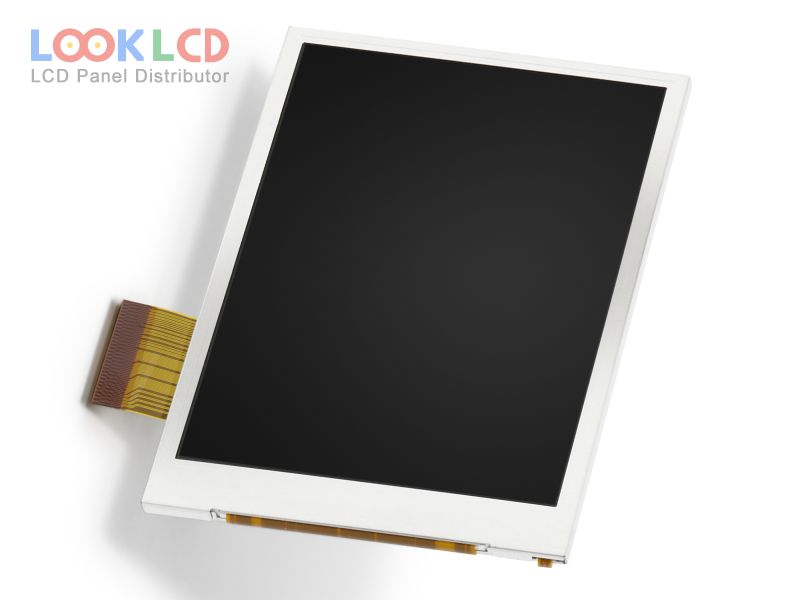

| PartNumber | LS037V7DW06 |
| Značka | SHARP |
| Velikost | 3.7 |
| aplikace | HHP |
| Rozlišení | 480×640 |
| Složení | LCM |
| Jas | 300 |
| CR | 900:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LS037V7DW06 |
| typ panelu | CG-Silicon , LCM |
| velikost panelu | 3.7 inch |
| rozlišení | 480(RGB)×640 , VGA |
| zobrazovací mód | ASV, Normally Black, Transflective |
| aktivní oblast | 56.16×74.88 mm |
| obrys | 65×89.2×3.6 mm |
| povrch | Antiglare |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 900:1 (Typ.)(Transmissive) |
| zobrazit barvy | 262K/16.7M (6-bit / 8-bit), CIE193150% |
| Doba odezvy | 15/20 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit) + SPI, 61 pins |
| vstupní napětí | 5.5/1.8V (Typ.)(VDD5/VCI) |
| aplikace | HHP |
| LS037V3DX01 | SHARP | 3.7 | 640×480 |
| LS037V3DX02 | SHARP | 3.7 | |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LS037V7DD06 | SHARP | 3.7 | 480×640 |
| LS037V7DD06R | SHARP | 3.7 | 480×640 |
| LS037V7DW01 | SHARP | 3.7 | 480×640 |
| LS037V7DW03 | SHARP | 3.7 | 480×640 |
| LS037V7DW03A | SHARP | 3.7 | 480×640 |
| LS037V7DW03B | SHARP | 3.7 | 480×640 |
| LS037V7DW06 | SHARP | 3.7 | 480×640 |
| CMD500TT10-C1 | ORTUSTECH | 3.2 | 320×240 |
| COM32H3N74ULC | ORTUSTECH | 3.2 | 480×800 |
| COM35H3M10XTC | ORTUSTECH | 3.5 | 240×320 |
| DLC0350AMG-4 | Other | 3.5 | 320×240 |
| LQ039Q2DS51 | SHARP | 3.9 | 320×240 |
| LQ043T1DG02 | SHARP | 4.3 | 480×272 |
| LS027B7DH01 | SHARP | 2.7 | 400×240 |
| T-55343GD035JU-LW-AFN | Kyocera | 3.5 | 320×240 |
| TX09D200VM0BAA | KOE | 3.5 | 240×320 |
| TX09D70VM1CEA | KOE | 3.5 | 240×320 |
