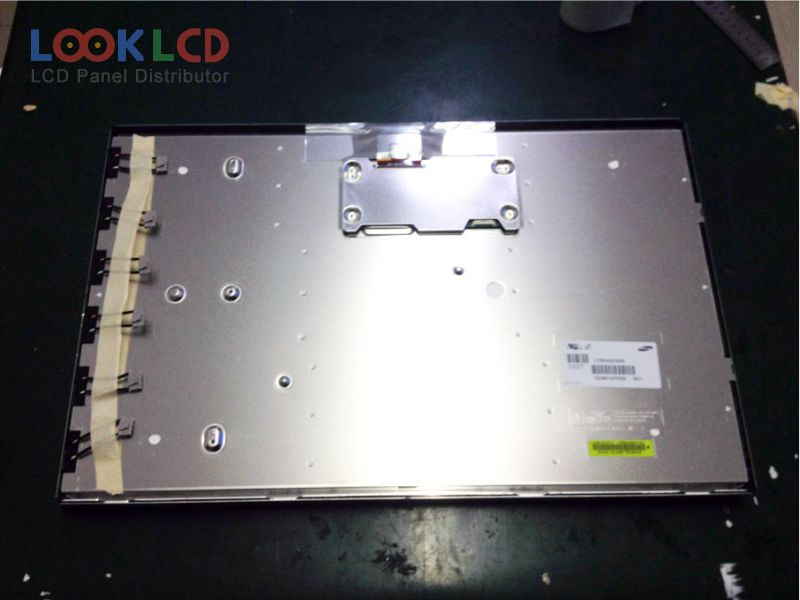

| PartNumber | LTM240CS09 |
| Značka | Samsung |
| Velikost | 24.0 |
| aplikace | DMPC |
| Rozlišení | 1920×1200 |
| Složení | LCM |
| Jas | 400 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTM240CS09 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 24.0 inch |
| rozlišení | 1920(RGB)×1200 , WUXGA |
| zobrazovací mód | S-PVA, Normally Black, Transmissive |
| aktivní oblast | 518.4×324 mm |
| obrys | 546.4×352 mm |
| povrch | Antiglare (Haze 50%), Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193192% |
| Doba odezvy | 11/5 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
