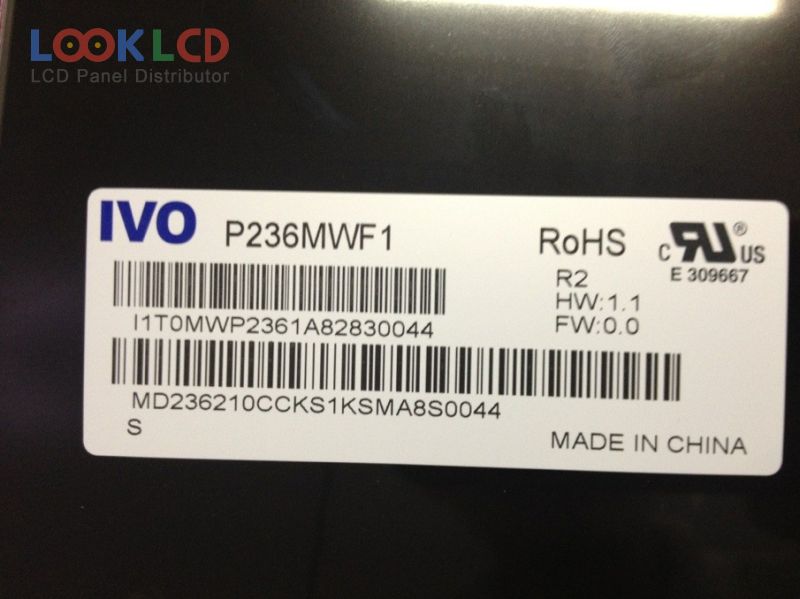

| PartNumber | P236MWF1 R2 |
| Značka | IVO |
| Velikost | 23.6 |
| aplikace | DMPC |
| Rozlišení | 1920×1080 |
| Složení | CELL |
| Jas | 0 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | No B/L |
| Rozhraní | LVDS |
| značka panelu | IVO |
| panelový model | P236MWF1 R2 |
| typ panelu | a-Si TFT-LCD , CELL |
| velikost panelu | 23.6 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 521.28×293.22 mm |
| obrys | 534.48×306.42×1.83 mm |
| povrch | Antiglare, Hard coating (3H) |
| hloubka skla | 0.70+0.70 mm |
| propustnost | 5.45% (Typ.)(with Polarizer) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Doba odezvy | 5 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
