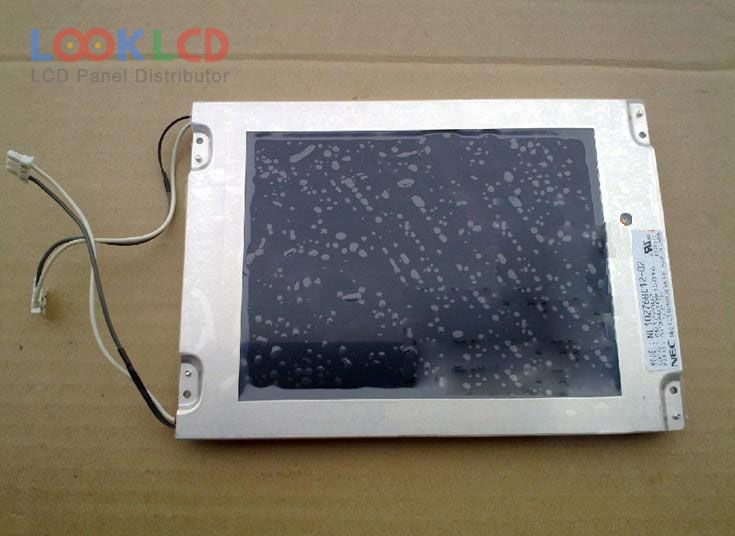

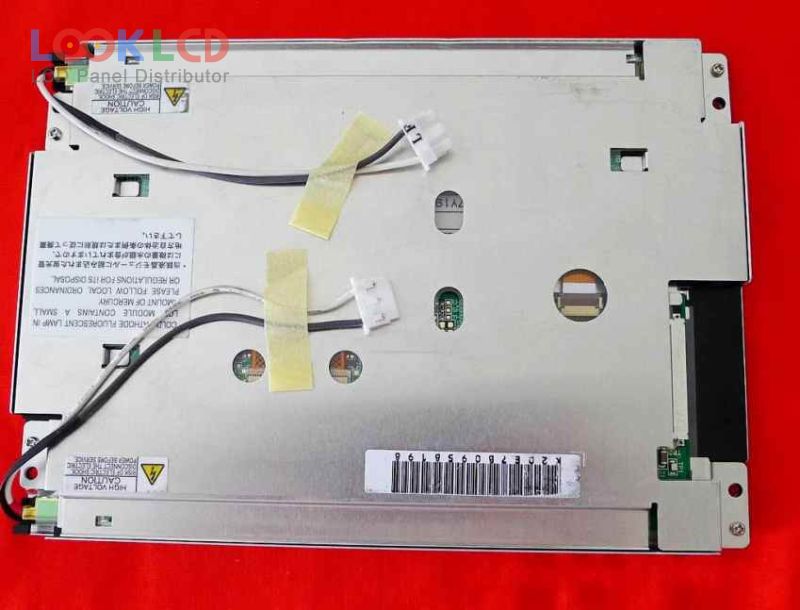

| PartNumber | NL10276BC12-02 |
| Značka | NLT |
| Velikost | 6.3 |
| aplikace | IA |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 250 |
| CR | 500:1 |
| Barvy | 262K/16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | NEC |
| panelový model | NL10276BC12-02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 6.3 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 129.024×96.768 mm |
| obrys | 178.8×126.8 mm |
| povrch | Antiglare, Hard coating (2H), Antireflection |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| Doba odezvy | 6/15 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| rohs: | |
| aplikace | IA |
