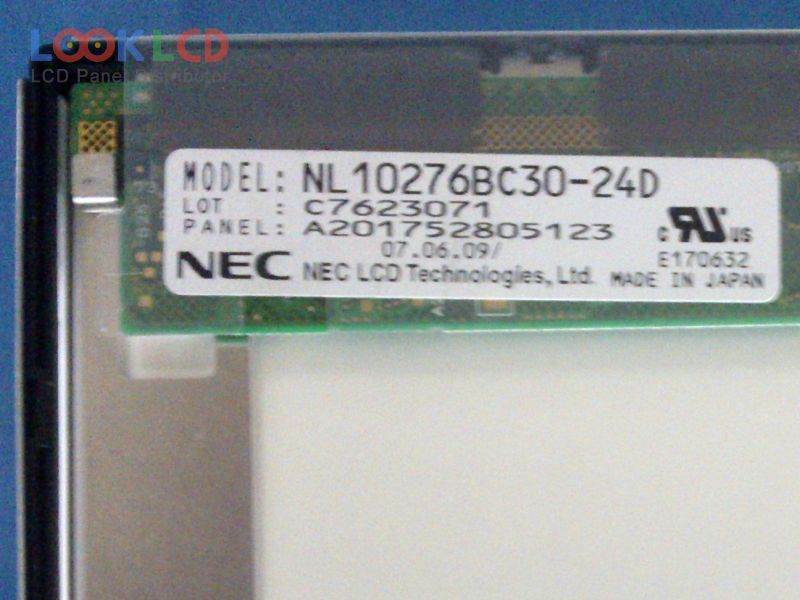

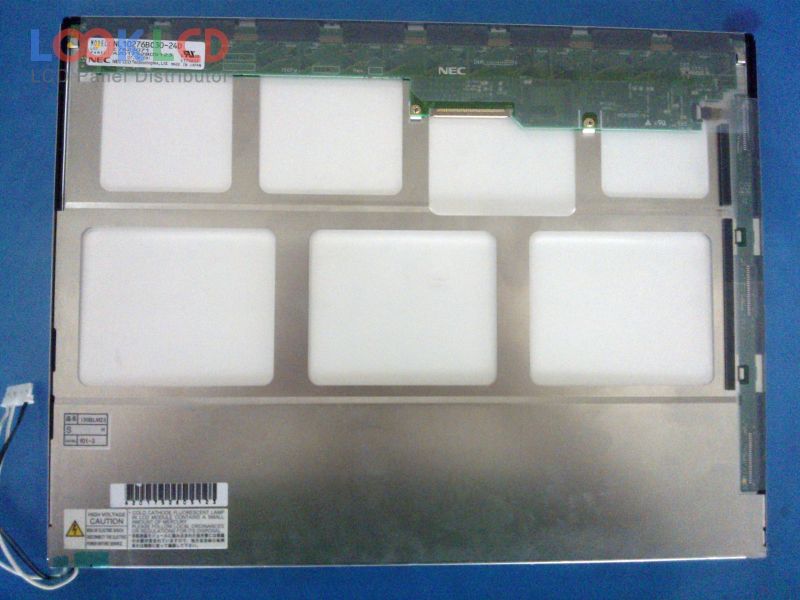

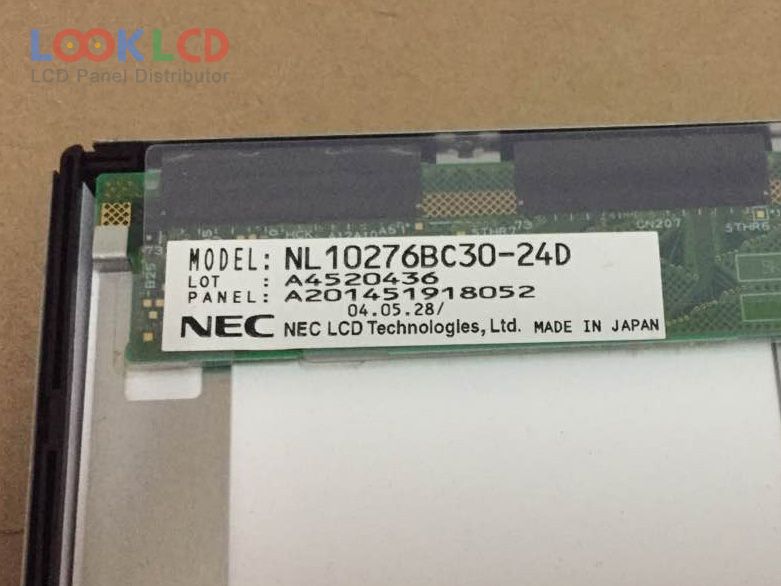

| PartNumber | NL10276BC30-24D |
| Značka | NLT |
| Velikost | 15.0 |
| aplikace | NBPC |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 320 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | NEC |
| panelový model | NL10276BC30-24D |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.0 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 304.128×228.096 mm |
| obrys | 317.3×242.2×10 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Clear, Hard coating (2H), Antireflection |
| jas | 320 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193172% |
| Doba odezvy | TBD |
| úhel pohledu | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
