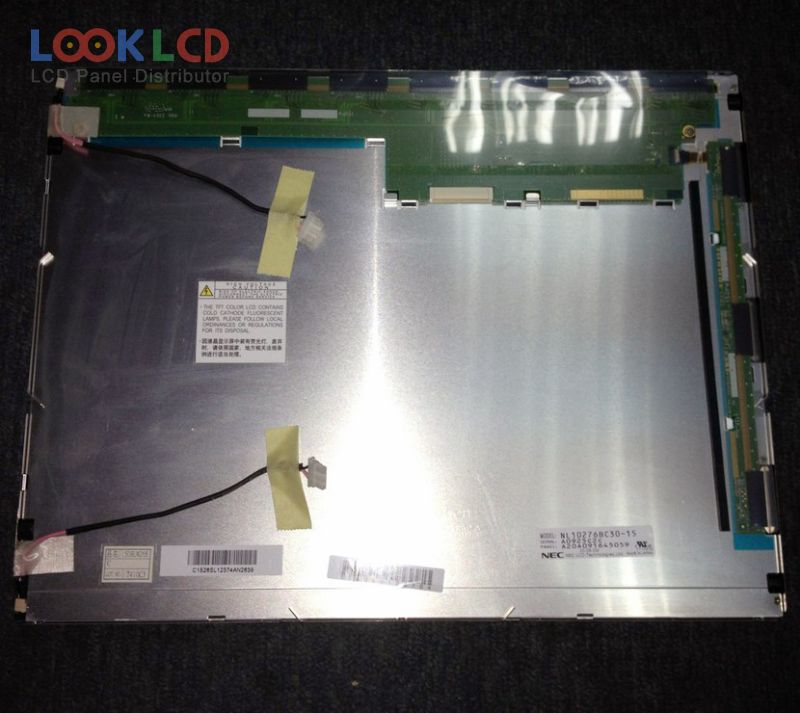

| PartNumber | NL10276BC30-15 |
| Značka | NLT |
| Velikost | 15.0 |
| aplikace | IA |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 250 |
| CR | 400:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | NEC |
| panelový model | NL10276BC30-15 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.0 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 304.128×228.096 mm |
| obrys | 328×252×11.5 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193160% |
| Doba odezvy | 8/17 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
| NL10276AC30-42C | NLT | 15.0 | 1024×768 |
| NL10276BC12-02 | NLT | 6.3 | 1024×768 |
| NL10276BC16-01 | NLT | 8.4 | 1024×768 |
| NL10276BC20-18 | NLT | 10.4 | 1024×768 |
| NL10276BC20-37 | NLT | 10.4 | 1024×768 |
| NL10276BC24-19D | NLT | 12.1 | 1024×768 |
| NL10276BC30-15 | NLT | 15.0 | 1024×768 |
| NL10276BC30-18C | NLT | 15.0 | 1024×768 |
| NL10276BC30-34D | NLT | 15.0 | 1024×768 |
| NL10276BC30-39 | NLT | 15.0 | 1024×768 |
| AA084SD11 | Mitsubishi | 8.4 | 800×600 |
| G321EV5B000 | SII | 4.7 | 320×240 |
| LMG5278XUFC-A | KOE | 9.4 | 640×480 |
| LQ104S1DG21 | SHARP | 10.4 | 800×600 |
| LQ10D421 | SHARP | 10.4 | 640×480 |
| NL8060AC26-11 | NLT | 10.4 | 800×600 |
| PD064VXA | E Ink | 6.4 | 640×480 |
| TM12864G3CCWGWA-1 | Tianma | 2.4 | 128×64 |
| TX26D203VM2BAA | KOE | 10.4 | 1024×768 |
| V16C6448AC | E Ink | 6.4 | 640×480 |
