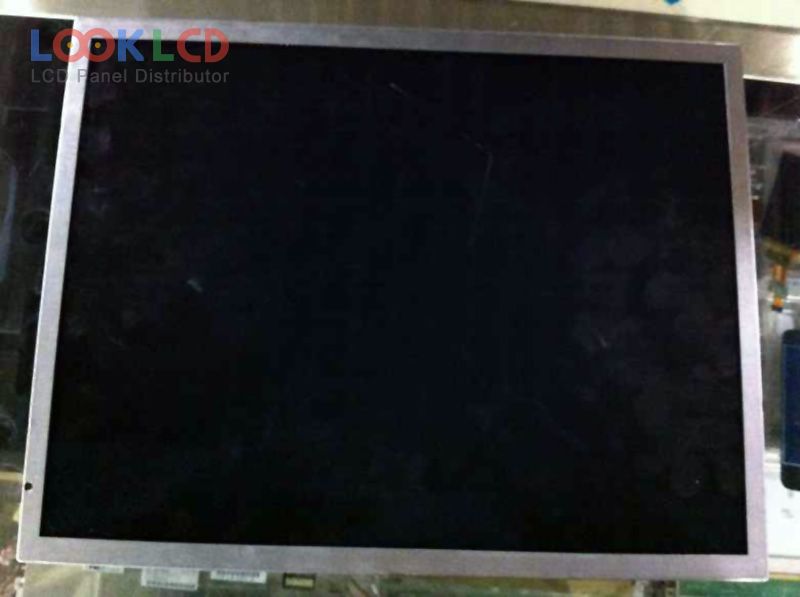

| PartNumber | NL10276BC30-18C |
| Značka | NLT |
| Velikost | 15.0 |
| aplikace | IA |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 600 |
| CR | 600:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | NEC |
| panelový model | NL10276BC30-18C |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.0 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 304.128×228.096 mm |
| obrys | 326.5×253.5×17 mm |
| povrch | Clear, Hard coating (2H), Antireflection |
| jas | 600 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193140% |
| Doba odezvy | 4/14 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| rohs: | |
| aplikace | IA |
