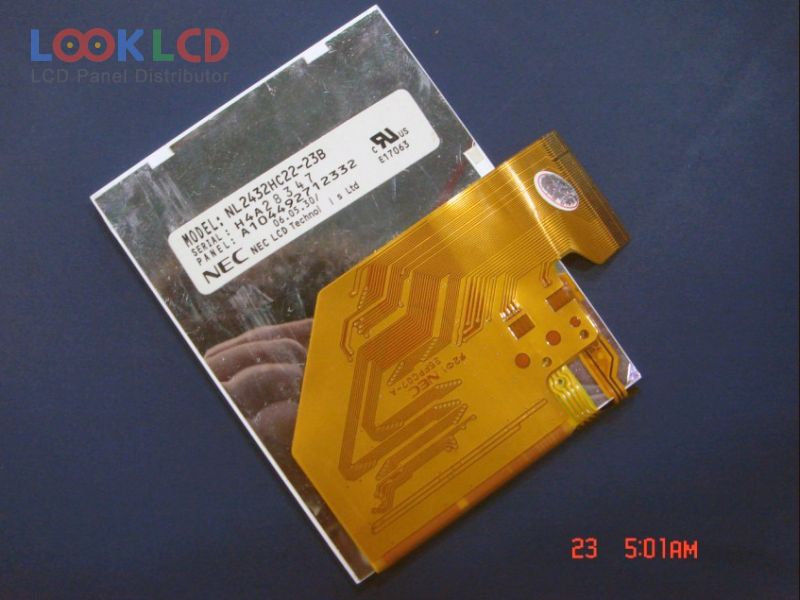

| PartNumber | NL2432HC22-23B |
| Značka | NLT |
| Velikost | 3.5 |
| aplikace | PDA |
| Rozlišení | 240×320 |
| Složení | LCM |
| Jas | 90 |
| CR | 80:1 |
| Barvy | |
| Podsvícení | WLED |
| Rozhraní | |
| značka panelu | NEC |
| panelový model | NL2432HC22-23B |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 240(RGB)×320 , QVGA |
| zobrazovací mód | TN, Normally White, Transflective |
| aktivní oblast | 53.64×71.52 mm |
| obrys | 64×85 mm |
| povrch | |
| jas | 90 cd/m² (Typ.) |
| kontrastní poměr | 80:1 (Typ.)(Transmissive)10:1 (Typ.)(Reflective) |
| zobrazit barvy | |
| Doba odezvy | |
| úhel pohledu | |
| typ lampy | WLED |
| rohs: | |
| aplikace | PDA |
