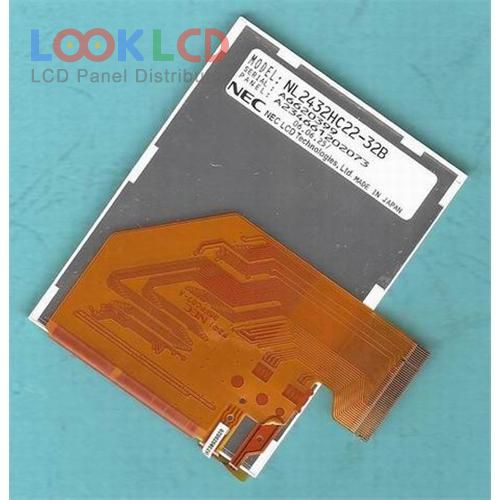

| PartNumber | NL2432HC22-32B |
| Značka | NLT |
| Velikost | 3.5 |
| aplikace | PDA |
| Rozlišení | 240×320 |
| Složení | LCM |
| Jas | 100 |
| CR | 70:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | NEC |
| panelový model | NL2432HC22-32B |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 240(RGB)×320 , QVGA |
| zobrazovací mód | TN, Normally White, Transflective |
| aktivní oblast | 53.64×71.52 mm |
| obrys | 64×85 mm |
| povrch | Antiglare |
| jas | 100 cd/m² (Typ.) |
| kontrastní poměr | 70:1 (Typ.)(Transmissive) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 39 (Typ.)(Tr+Td) |
| úhel pohledu | 25/25/25/20 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | WLED |
| signálové rozhraní | CMOS (1 ch, 6-bit) |
| vstupní napětí | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| rohs: | |
| aplikace | PDA |
