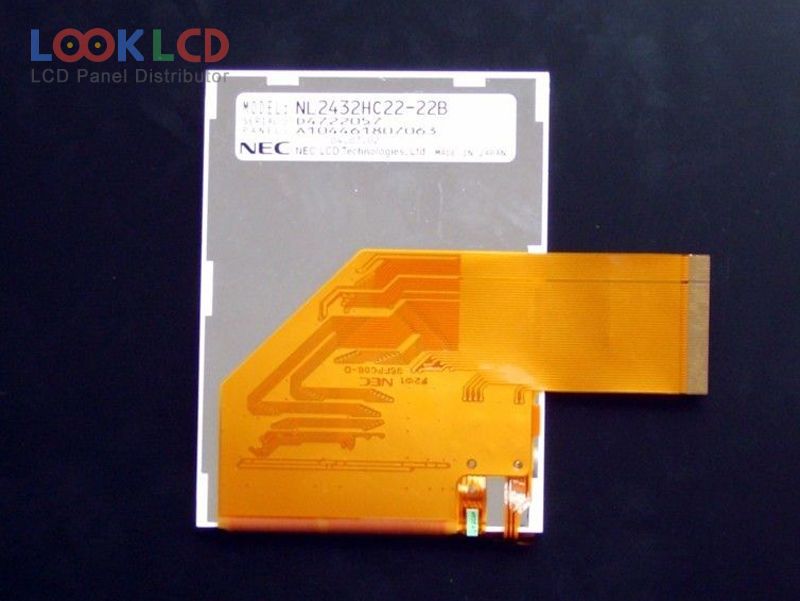

| PartNumber | NL2432HC22-22B |
| Značka | NLT |
| Velikost | 3.5 |
| aplikace | PDA |
| Rozlišení | 240×320 |
| Složení | LCM |
| Jas | 90 |
| CR | 90:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | NEC |
| panelový model | NL2432HC22-22B |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 240(RGB)×320 , QVGA |
| zobrazovací mód | TN, Normally White, Transflective |
| aktivní oblast | 53.64×71.52 mm |
| obrys | 64×85×4.85 mm |
| povrch | |
| jas | 90 cd/m² (Typ.) |
| kontrastní poměr | 90:1 (Typ.)(Transmissive)6:1 (Typ.)(Reflective) |
| zobrazit barvy | 262K (6-bit), CIE193140% |
| Doba odezvy | 14/25 (Typ.)(Tr/Td) |
| úhel pohledu | |
| frekvence | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhraní | CMOS (1 ch, 6-bit), 50 pins |
| vstupní napětí | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| rohs: | |
| aplikace | PDA |
