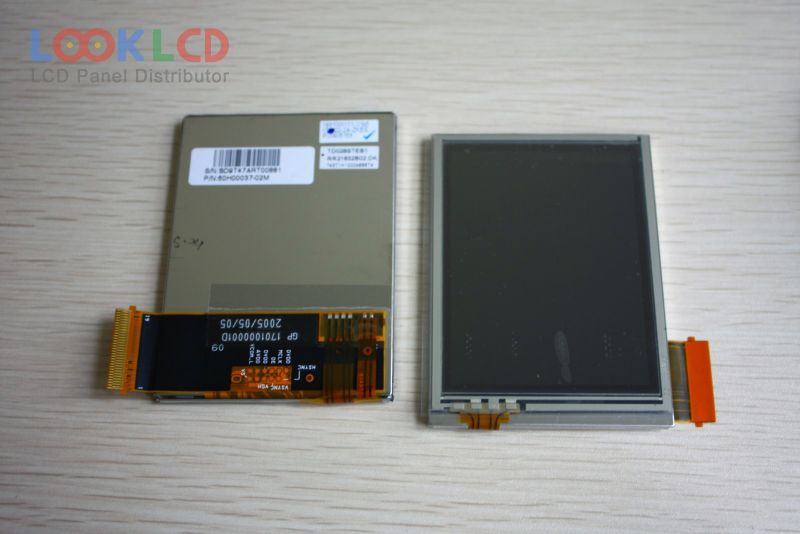

| PartNumber | TD028STEB1 |
| Značka | TPO |
| Velikost | 2.8 |
| aplikace | MPH |
| Rozlišení | 240×320 |
| Složení | LCM |
| Jas | 150 |
| CR | 150:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | Toppoly |
| panelový model | TD028STEB1 |
| typ panelu | LTPS TFT-LCD , LCM |
| velikost panelu | 2.8 inch |
| rozlišení | 240(RGB)×320 , QVGA |
| zobrazovací mód | TN, Normally White, Transflective |
| aktivní oblast | 43.2×57.6 mm |
| obrys | 52.9×71.7 mm |
| povrch | |
| jas | 150 cd/m² (Typ.) |
| kontrastní poměr | 150:1 (Typ.)(Transmissive)10:1 (Typ.)(Reflective) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 33 (Typ.)(Tr+Td) |
| úhel pohledu | 40/45/60/35 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 4S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 61 pins |
| vstupní napětí | 2.8/5.0/10/-5V (Typ.)(DVDD/AVDD/VGH/VVEE) |
| aplikace | MPH |
