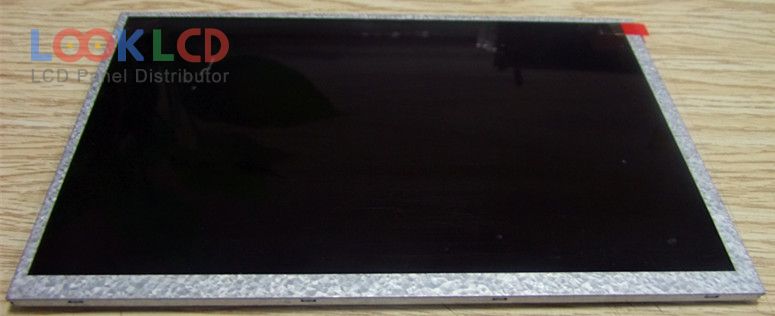

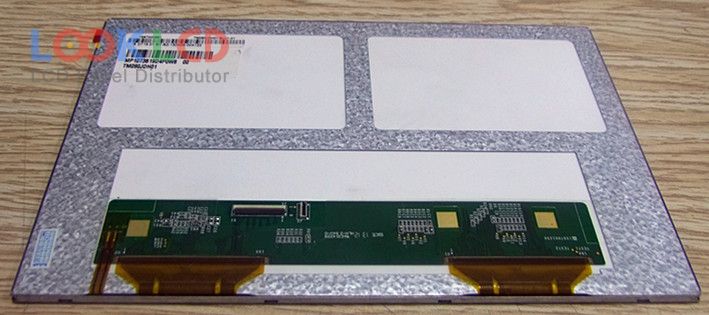

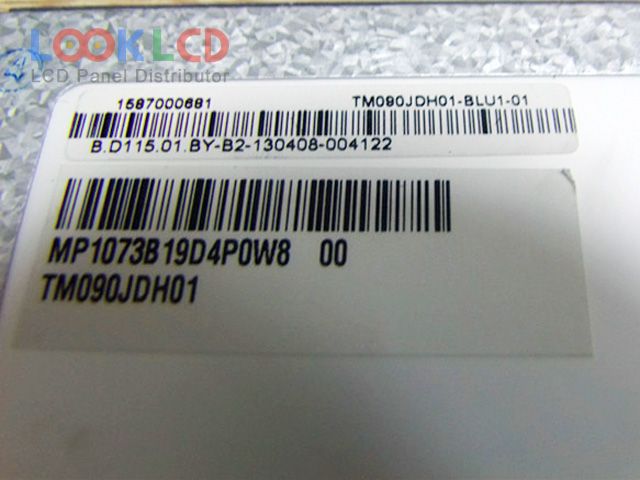

| PartNumber | TM090JDH01 |
| Značka | Tianma |
| Velikost | 9.0 |
| aplikace | PAD |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | 250 |
| CR | 700:1 |
| Barvy | 262K/16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | TIANMA |
| panelový model | TM090JDH01 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 9.0 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 193.92×121.2 mm |
| obrys | 206.76×135.06×4.8 mm |
| povrch | |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 700:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S12PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 51 pins |
| vstupní napětí | 3.3/11/20/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikace | PAD |
