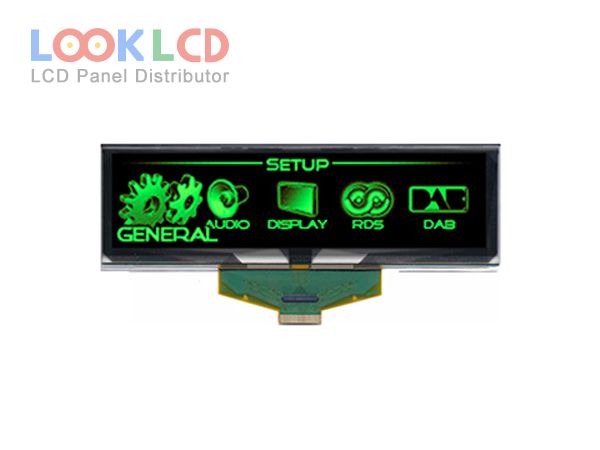

| PartNumber | UG-5664ASGGF01 |
| Značka | WiseChip |
| Velikost | 5.5 |
| aplikace | IA |
| Rozlišení | 256×64 |
| Složení | OLED |
| Jas | 80 |
| CR | 2000:1 |
| Barvy | Grayscale(G) |
| Podsvícení | self |
| Rozhraní | CPU/SPI |
| značka panelu | Univision |
| panelový model | UG-5664ASGGF01 |
| typ panelu | PM-OLED , OLED |
| velikost panelu | 5.5 inch |
| rozlišení | 256×64 |
| aktivní oblast | 135.65×33.89 mm |
| obrys | 146×45×2.1 mm |
| povrch | |
| jas | 80 cd/m² (Typ.) |
| kontrastní poměr | 2000 : 1 (Typ.) |
| zobrazit barvy | Grayscale(G) (4-bit) |
| úhel pohledu | 80/80/80/80 (Min.)(L/R/U/D) |
| řidič ic | COF Built-in SSD1322 |
| signálové rozhraní | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| vstupní napětí | 2.8/15V (Typ.)(VCI/VCC) |
| rohs: | |
| aplikace | IA |
