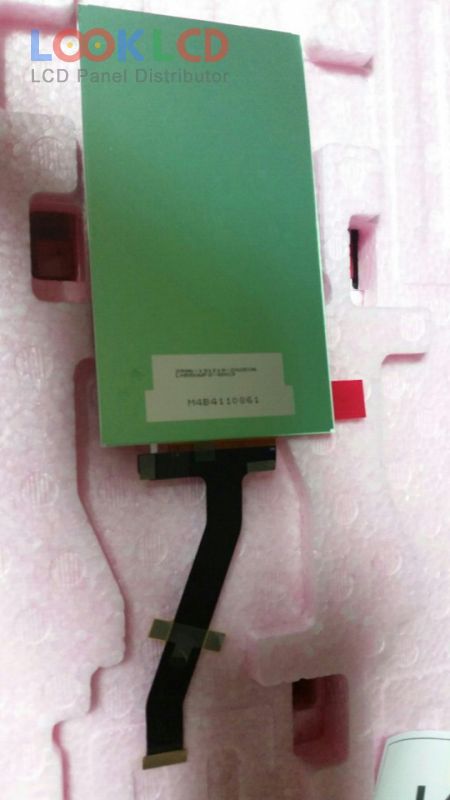

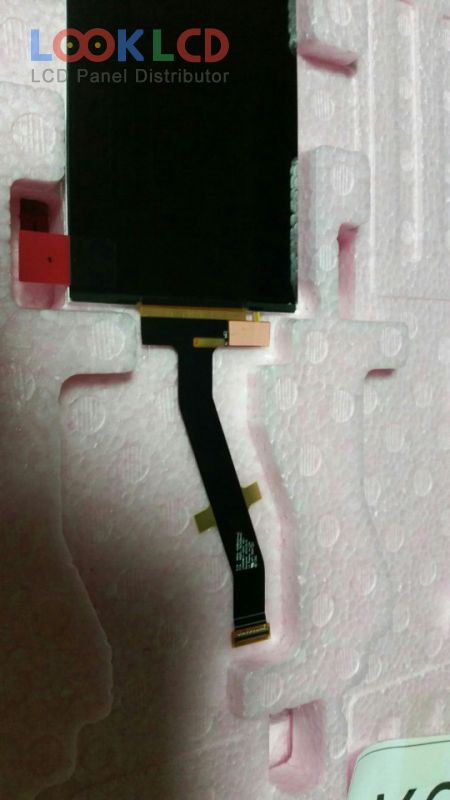

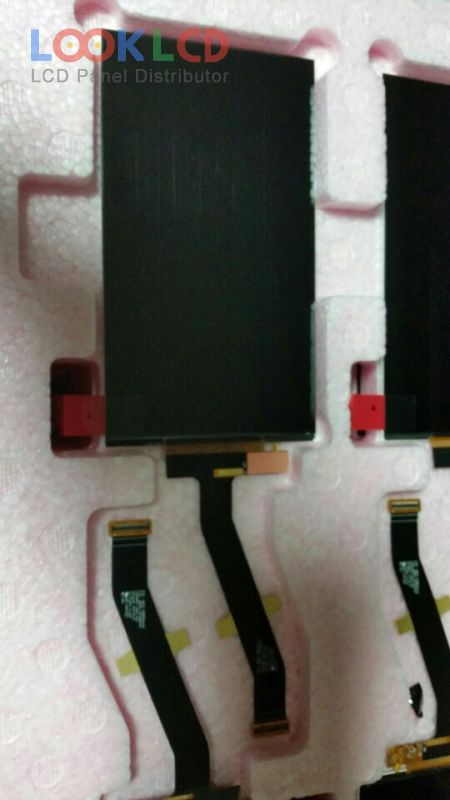

| PartNumber | LH550WF2-SD03 |
| Značka | LG Display |
| Velikost | 5.5 |
| aplikace | MPH |
| Rozlišení | 1080×1920 |
| Složení | LCM |
| Jas | 460 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | LG Display |
| panelový model | LH550WF2-SD03 |
| typ panelu | LTPS TFT-LCD , LCM |
| velikost panelu | 5.5 inch |
| rozlišení | 1080(RGB)×1920 , FHD |
| zobrazovací mód | AH3-IPS, Normally Black, Transmissive |
| aktivní oblast | 68.04×120.96 mm |
| obrys | 70.94×128.01×1.55 mm |
| povrch | |
| jas | 460 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193170% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S2PWLEDWithout Driver |
| signálové rozhraní | MIPI (4 data lanes), 50 pins |
| vstupní napětí | 1.8/5.0/-5.0V (Typ.)(VDD/VAN/VPG) |
| aplikace | MPH |
