| PartNumber | VVX10T022N00 |
| Značka | Panasonic |
| Velikost | 10.1 |
| aplikace | PAD |
| Rozlišení | 2560×1600 |
| Složení | LCM |
| Jas | 400 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | eDP |
| značka panelu | Panasonic |
| panelový model | VVX10T022N00 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 2560(RGB)×1600 , WQXGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 216.96×135.6 mm |
| obrys | 227.65×147.85×4.37 mm |
| povrch | Hard coating |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 30 (Max.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 7S6PWLEDWithout Driver |

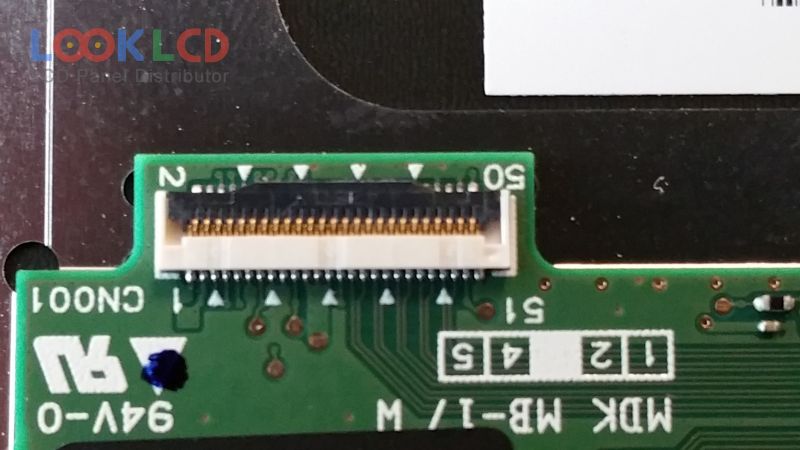

| signálové rozhraní | eDP (4 Lanes), 51 pins |
| vstupní napětí | 3.7V (Typ.) |
| aplikace | PAD |
| AM-1024600L3TMQW-T05H | AMPIRE | 10.1 | 1024×600 |
| B101XAN02.0 | AUO | 10.1 | 1366×768 |
| HJ101NA-02A | Innolux | 10.1 | 1280×800 |
| HSD101PHW1-A00 | HannStar | 10.1 | 1366×768 |
| LP101WH1-TLB1 | LG Display | 10.1 | 1366×768 |
| LP101WH1-TLP1 | LG Display | 10.1 | 1366×768 |
| N101BCG-GK1 | Innolux | 10.1 | 1366×768 |
| PQ 3Qi-01 | Pixel Qi | 10.1 | 1024×600 |
| TV101WXM-NP1 | BOE | 10.1 | 1280×800 |
| VVX10T022N00 | Panasonic | 10.1 | 2560×1600 |
| B080XAN02.0 | AUO | 7.9 | 768×1024 |
| B101EVN06.1 | AUO | 10.1 | 1280×800 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| LP079X01-SMA7 | LG Display | 7.9 | 768×1024 |
| LQ101R1SX03 | SHARP | 10.1 | 2560×1600 |
| LTL101DL03-T01 | Samsung | 10.1 | 2560×1600 |
| LTN097XL02-A01 | Samsung | 9.7 | 1024×768 |
| N070ICE-G02 Rev.C3 | Innolux | 7.0 | 800×1280 |
| N080JCE-G41 | Innolux | 8.0 | 1200×1920 |
| TPF0702001N | JDI | 7.0 | 1200×1920 |
