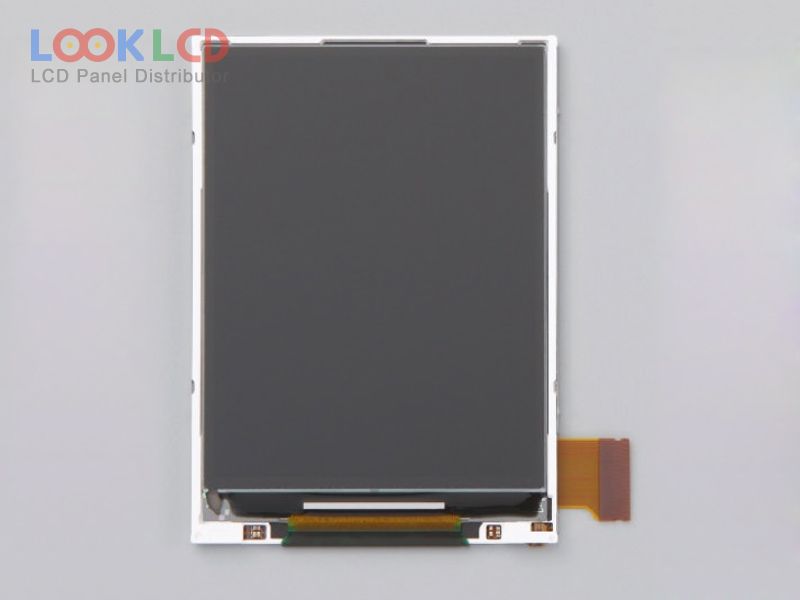

| PartNumber | 28QVF2H |
| Značka | SII |
| Velikost | 2.8 |
| aplikace | HHP |
| Rozlišení | 240×320 |
| Složení | LCM |
| Jas | 350 |
| CR | 800:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SII |
| panelový model | 28QVF2H |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 2.8 inch |
| rozlišení | 240(RGB)×320 , QVGA |
| zobrazovací mód | FFS, Normally Black, Transmissive |
| aktivní oblast | 43.2×57.6 mm |
| obrys | 49×69 mm |
| povrch | Clear, Hard coating |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193172% |
| Doba odezvy | 35 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 4S1PWLED |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit) + SPI, 35 pins |
| vstupní napětí | (1.65~3.3)/(2.5~3.3)(IOVCC/VCI) |
| aplikace | HHP |
