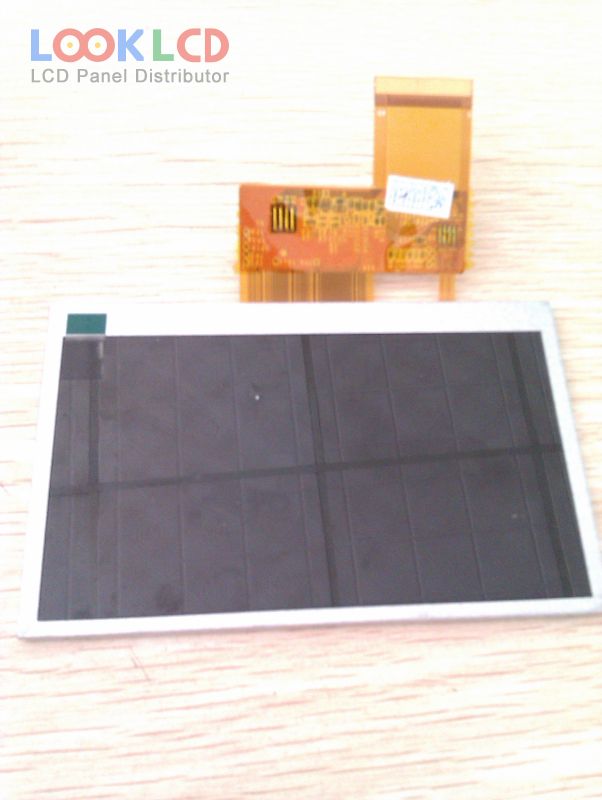

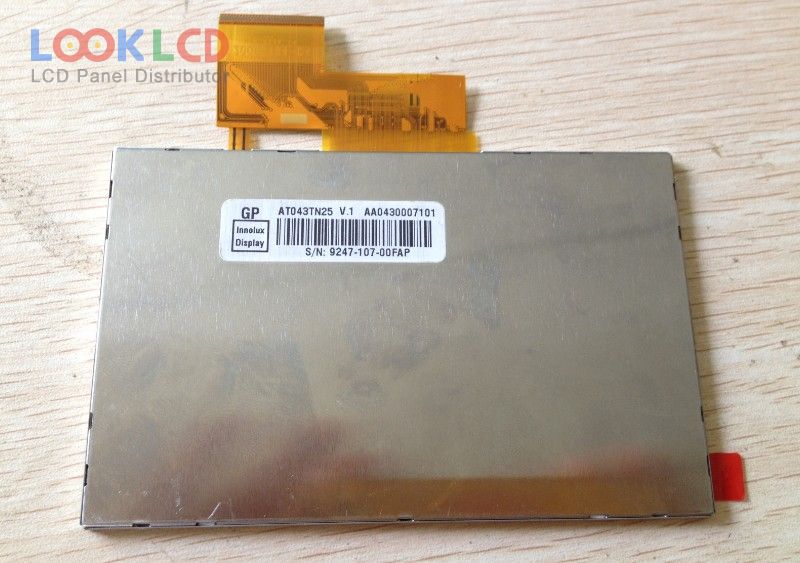

| PartNumber | AT043TN25 V.1 |
| Značka | Innolux |
| Velikost | 4.3 |
| aplikace | PND |
| Rozlišení | 480×272 |
| Složení | LCM |
| Jas | 500 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | INNOLUX |
| panelový model | AT043TN25 V.1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 480(RGB)×272 , WQVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 95.04×53.856 mm |
| obrys | 105.5×67.2 mm |
| povrch | Antiglare |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193150% |
| Doba odezvy | 10/15 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 9S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| vstupní napětí | 1.8/3.3V (Typ.)(DVDD/AVDD) |
| aplikace | PND |
| A043FW02 V0 | AUO | 4.3 | 480×272 |
| AT043TN13 | Innolux | 4.3 | 480×272 |
| AT043TN13 TP | Innolux | 4.3 | 480×272 |
| AT043TN24 V.1 | Innolux | 4.3 | 480×272 |
| AT043TN24 V.7 | Innolux | 4.3 | 480×272 |
| AT043TN25 V.1 | Innolux | 4.3 | 480×272 |
| AT043TN25 V.2 | Innolux | 4.3 | 480×272 |
| LMS430HF17-002 | Samsung | 4.3 | 480×272 |
| LMS430HF41-004 | Samsung | 4.3 | 480×272 |
| LQ043T3DX0F | SHARP | 4.3 | 480×272 |
| DLC0430LZG-6 | Other | 4.3 | 480×272 |
| DLC0700FDG-T-6 | Other | 7.0 | 800×480 |
| GPM782A0 | Giantplus | 3.5 | 320×240 |
| LB035Q04-TD08 | LG Display | 3.5 | 320×240 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
| LTE480WV-F01 | Samsung | 4.8 | 800×480 |
| PW035XS1 | E Ink | 3.5 | 320×234 |
| TM050RDH03 | Tianma | 5.0 | 800×480 |
| TS047NAARB01-00 | Tianma | 4.7 | 480×272 |
