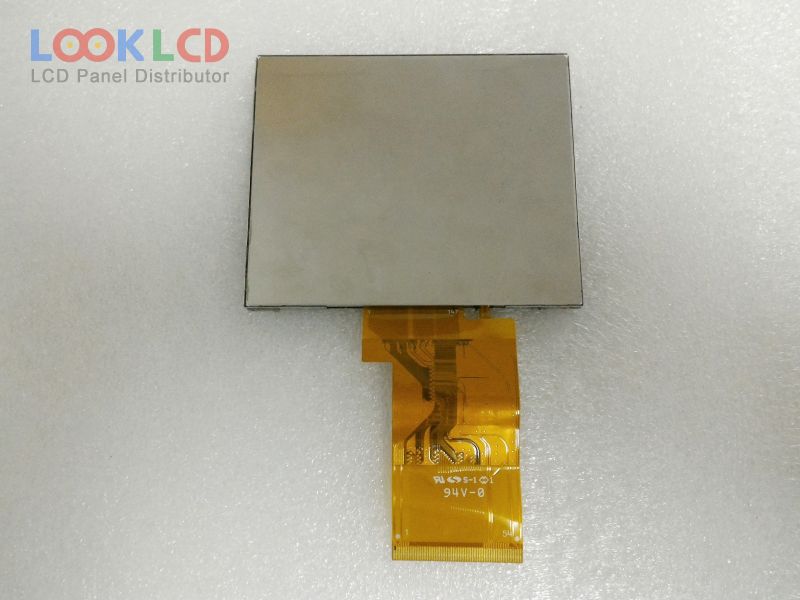

| PartNumber | GPM782A0 |
| Značka | Giantplus |
| Velikost | 3.5 |
| aplikace | PND |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 300 |
| CR | 350:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | Giantplus |
| panelový model | GPM782A0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 70.08×52.56 mm |
| obrys | 76.9×63.9 mm |
| povrch | |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 350:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 60/60/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit) + SPI, 54 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PND |
