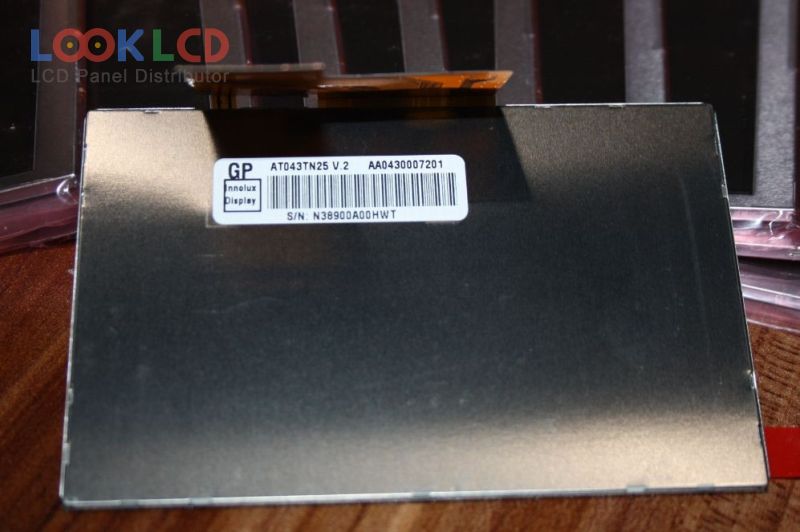

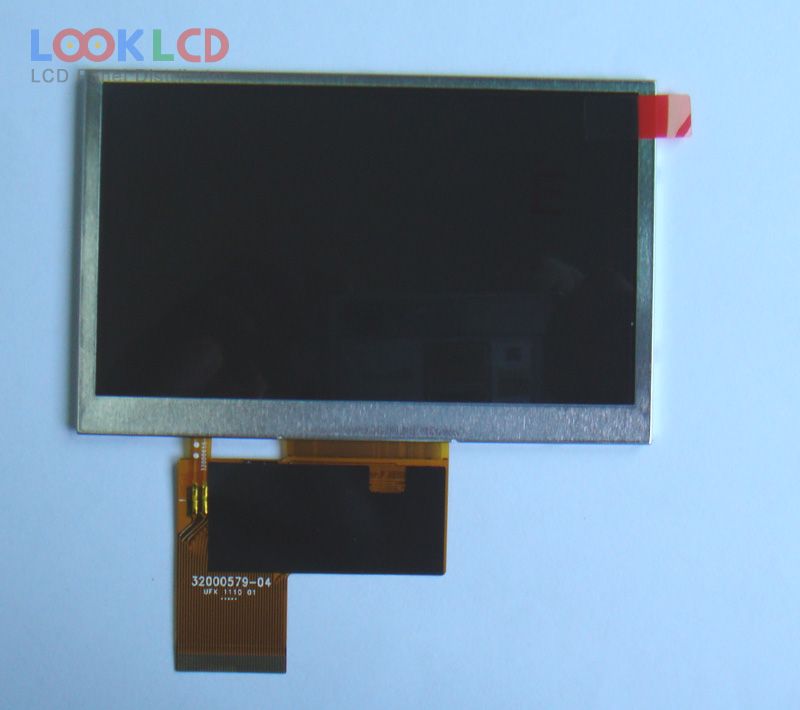

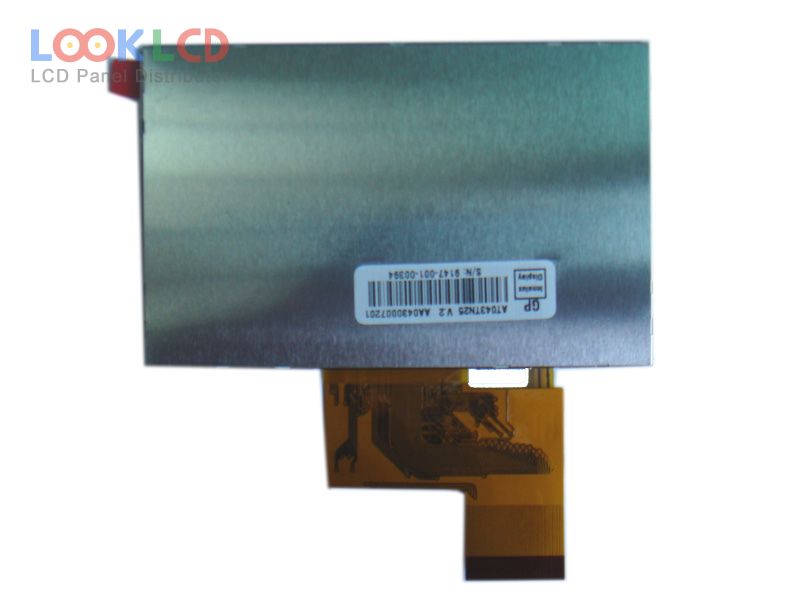

| PartNumber | AT043TN25 V.2 |
| Značka | Innolux |
| Velikost | 4.3 |
| aplikace | PND |
| Rozlišení | 480×272 |
| Složení | LCM |
| Jas | 500 |
| CR | 500:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | CHIMEI INNOLUX |
| panelový model | AT043TN25 V.2 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 480(RGB)×272 , WQVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 95.04×53.856 mm |
| obrys | 105.5×67.2×3.1 mm |
| povrch | Antiglare |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193150% |
| Doba odezvy | 10/15 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 8S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PND |
