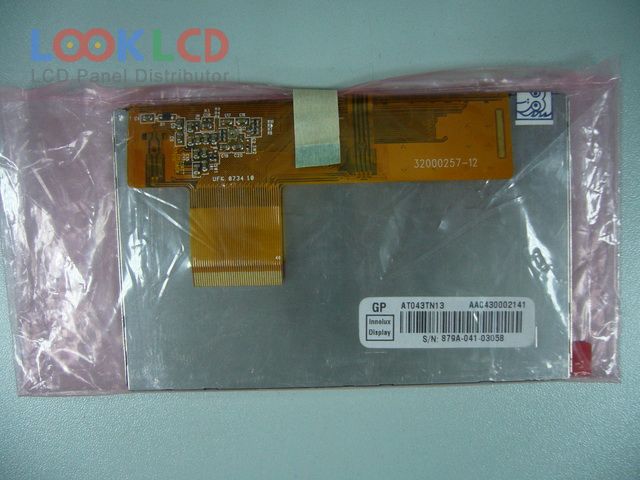

| PartNumber | AT043TN13 |
| Značka | Innolux |
| Velikost | 4.3 |
| aplikace | PND |
| Rozlišení | 480×272 |
| Složení | LCM |
| Jas | 350 |
| CR | 500:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | INNOLUX |
| panelový model | AT043TN13 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 480(RGB)×272 , WQVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 95.04×53.856 mm |
| obrys | 105.5×67.2 mm |
| povrch | Antiglare |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 10/15 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S2PWLED |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 40 pins |
| vstupní napětí | (2.5/3.3)/5.0V (Typ.)(VDD/AVDD) |
| rohs: | |
| aplikace | PND |
| AT043TN13 | Innolux | 4.3 | 480×272 |
| AT043TN13 TP | Innolux | 4.3 | 480×272 |
| AT043TN24 V.1 | Innolux | 4.3 | 480×272 |
| AT043TN24 V.7 | Innolux | 4.3 | 480×272 |
| AT043TN25 V.1 | Innolux | 4.3 | 480×272 |
| AT043TN25 V.2 | Innolux | 4.3 | 480×272 |
| DLC0430LZG-T | Other | 4.3 | 480×272 |
| LQ043T1DG03 | SHARP | 4.3 | 480×272 |
| LQ043Y1DX01 | SHARP | 4.3 | 480×800 |
| LR043AC212 | Innolux | 4.3 | 480×272 |
| 43WQW1H | SII | 4.3 | 480×272 |
| 43WQW4T | SII | 4.3 | 480×272 |
| 43WVF0H | SII | 4.3 | 800×480 |
| CLAA050LA0ACW | CPT | 5.0 | 800×480 |
| DLC0430LZG-6 | Other | 4.3 | 480×272 |
| GPM782A0 | Giantplus | 3.5 | 320×240 |
| LB035Q01-TJ01 | LG Display | 3.5 | 320×240 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LTE400WQ-E01 | Samsung | 4.0 | 480×272 |
| TM047NBH01 | Tianma | 4.7 | 480×272 |
