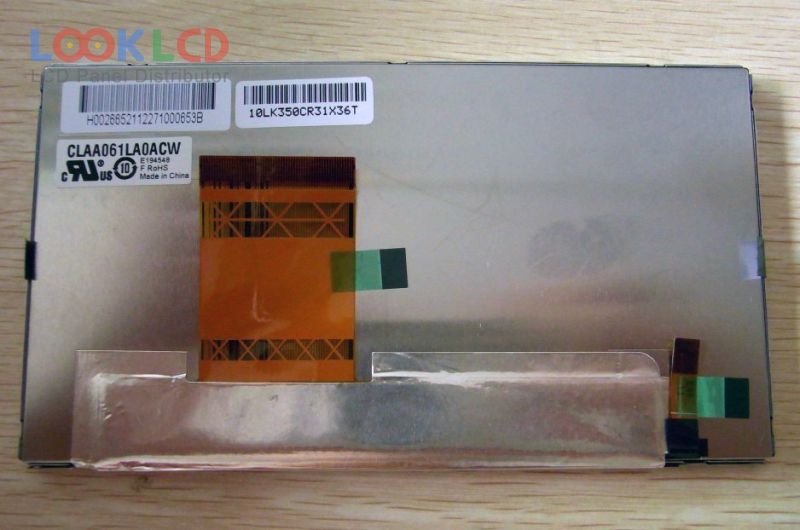

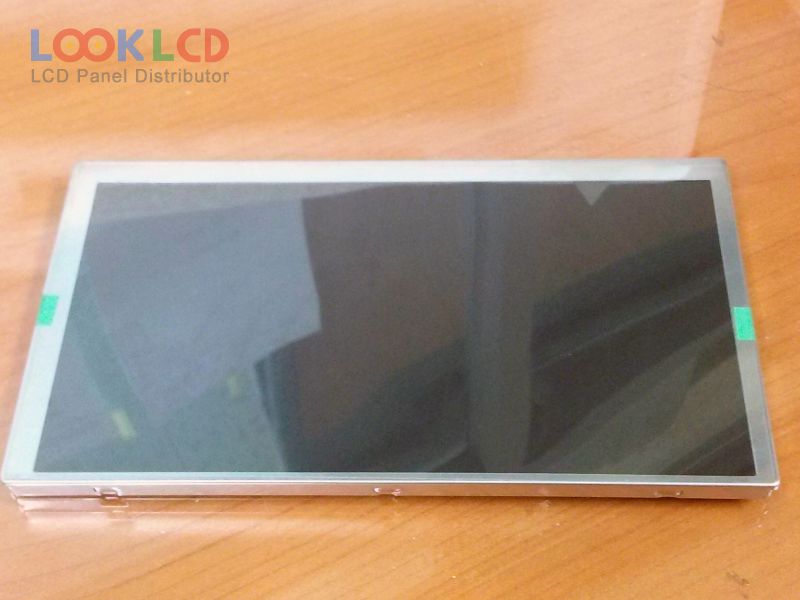

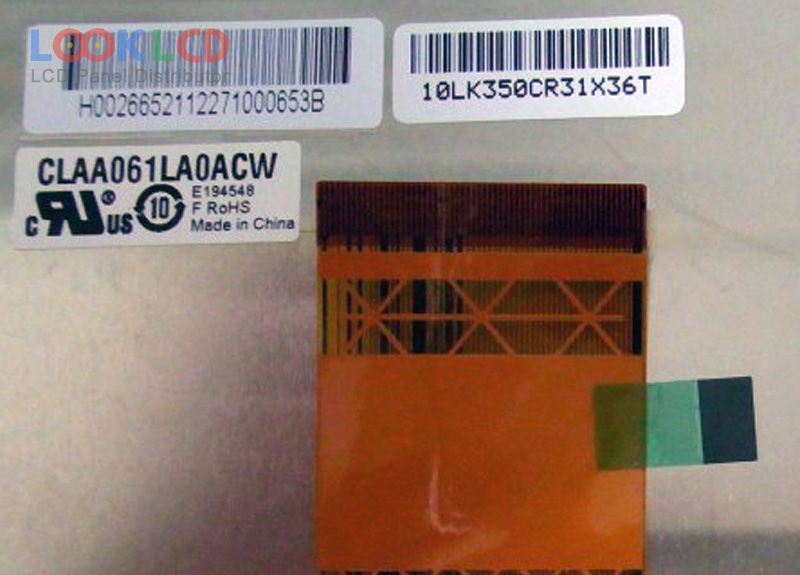

| PartNumber | CLAA061LA0ACW |
| Značka | CPT |
| Velikost | 6.1 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 500 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | CPT |
| panelový model | CLAA061LA0ACW |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 6.1 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 136.2×72 mm |
| obrys | 149×82.9×6.32 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193170% |
| Doba odezvy | 7/13 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S4PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 6-bit), 60 pins |
| vstupní napětí | 3.3/9.2/18/-6V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikace | CNS |
