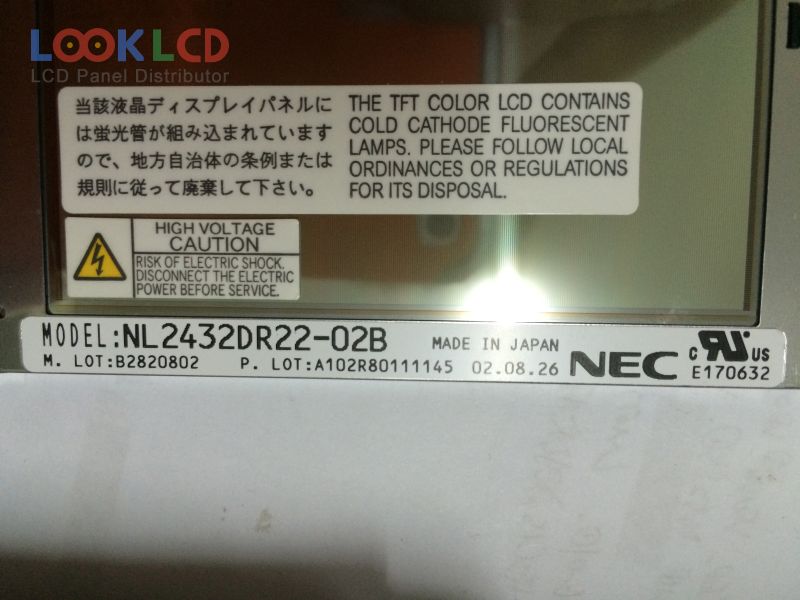

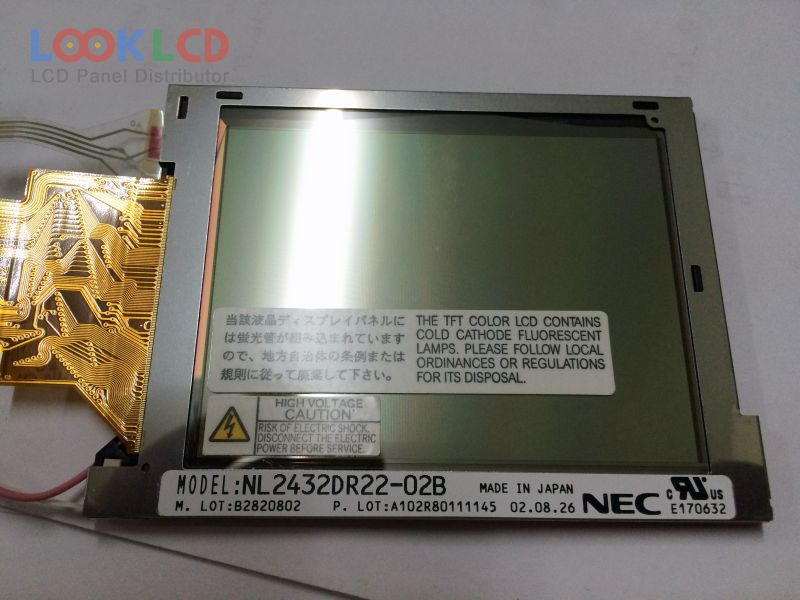

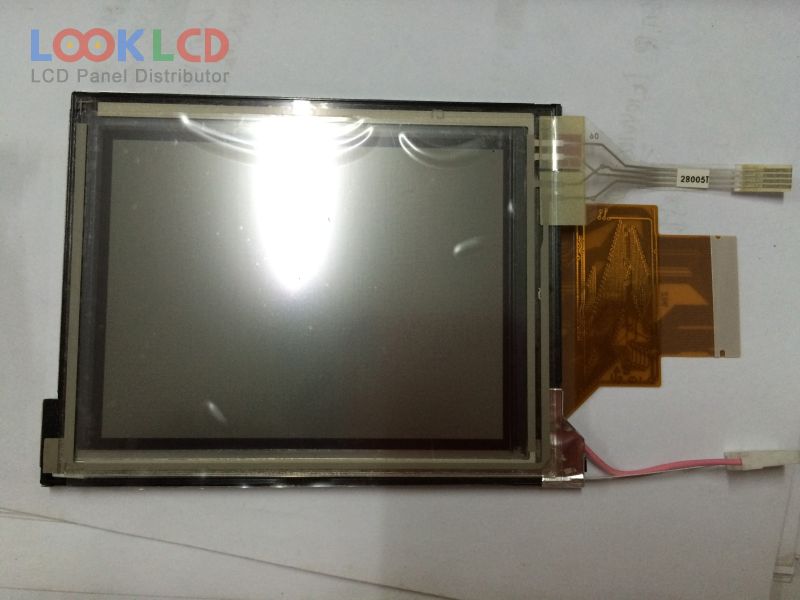

| PartNumber | NL2432DR22-02B |
| Značka | NLT |
| Velikost | 3.5 |
| aplikace | PDA |
| Rozlišení | 240×320 |
| Složení | LCM |
| Jas | 85 |
| CR | |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | NEC |
| panelový model | NL2432DR22-02B |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 240(RGB)×320 , QVGA |
| zobrazovací mód | TN, Normally White, Reflective |
| aktivní oblast | 53.64×71.52 mm |
| obrys | 70×96×4.85 mm |
| povrch | |
| jas | 85 cd/m² (Typ.) |
| kontrastní poměr | 8/10(Reflective) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 15/17 (Typ.)(Tr/Td) |
| úhel pohledu | |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | CMOS (1 ch, 6-bit), 45 pins |
| vstupní napětí | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| aplikace | PDA |
