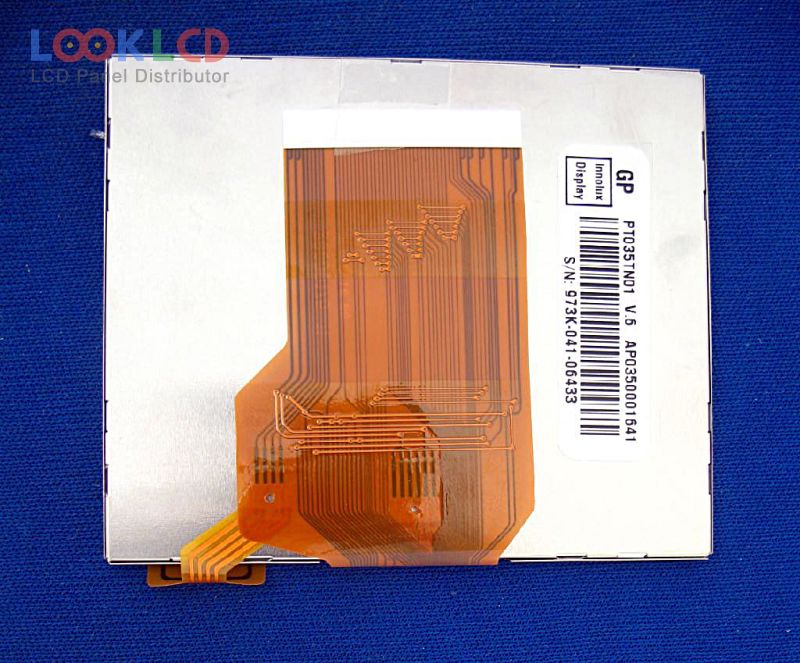

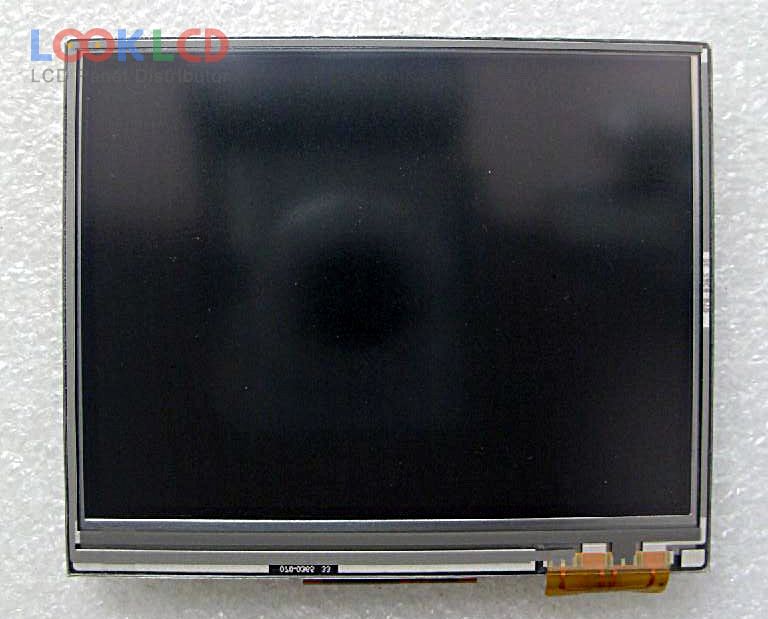

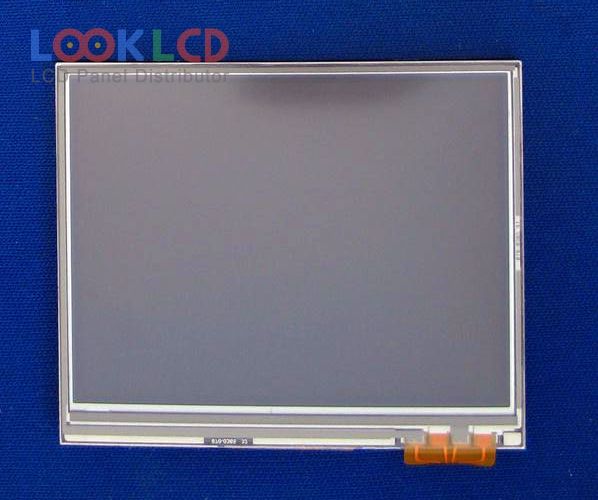

| PartNumber | PT035TN01 V.6 |
| Značka | Innolux |
| Velikost | 3.5 |
| aplikace | PND |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 350 |
| CR | 300:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | Parallel/Serial |
| značka panelu | INNOLUX |
| panelový model | PT035TN01 V.6 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, TMR |
| aktivní oblast | 70.08×52.56 mm |
| obrys | 78.2×65×4.8 mm |
| povrch | Antiglare |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 300 : 1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 15/20 (Typ.)(Tr/Td) |
| úhel pohledu | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhraní | Digital RGB (8/24-bit) + SPI, CCIR601/656, 60 pins |
| vstupní napětí | 3.3/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikace | PND |
