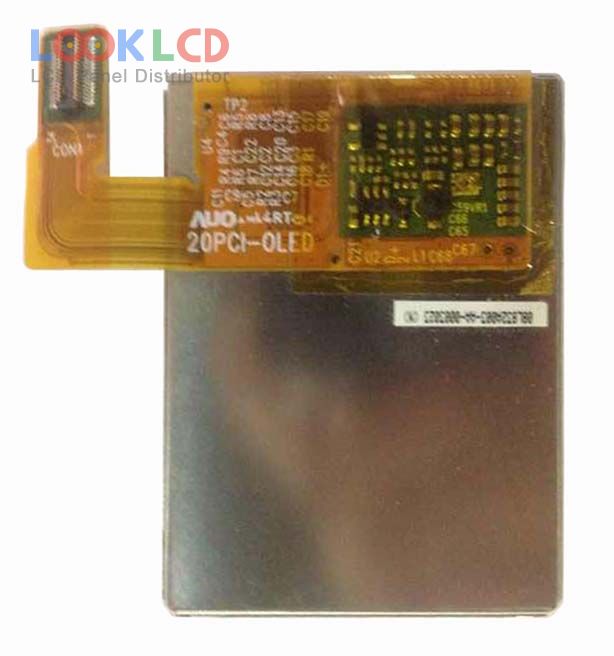

| PartNumber | H020HD01 V0 |
| Značka | AUO |
| Velikost | 2.0 |
| aplikace | MPH |
| Rozlišení | 176×220 |
| Složení | OLED |
| Jas | 105 |
| CR | 10000:1 |
| Barvy | 65K/262K |
| Podsvícení | self |
| Rozhraní | CPU |
| značka panelu | AUO |
| panelový model | H020HD01 V0 |
| typ panelu | AM-OLED , OLED |
| velikost panelu | 2.0 inch |
| rozlišení | 176(RGB)×220 , QCIF+ |
| aktivní oblast | 31.152×38.94 mm |
| obrys | 39.52×53.2 mm |
| povrch | Hard coating |
| jas | 105 cd/m² (Typ.) |
| kontrastní poměr | 10000 : 1 (Typ.) |
| zobrazit barvy | 65K/262K (6-bit), CIE193168% |
| úhel pohledu | 30/30/30/30 (Typ.)(CR≥2)(L/R/U/D) |
| řidič ic | Built-in uPD161621 + uPD161644 |
| signálové rozhraní | CPU, 34 pins |
| vstupní napětí | 3.3/-7.0V (Typ.)(VCC/VSS) |
| aplikace | MPH |
| AM-320240-020A | Other | 2.0 | 320×240 |
| H020HD01 V0 | AUO | 2.0 | 176×220 |
| LQ020B3DC01 | SHARP | 2.0 | 176×220 |
| LS020A8DX02 | SHARP | 2.0 | 320×240 |
| LS020B8UD02 | SHARP | 2.0 | 176×220 |
| LTM020A52A | TOSHIBA | 2.0 | 240×320 |
| LTS200QC-F0V | Samsung | 2.0 | 176×220 |
| OEL9M0064-Y-E | Other | 2.0 | 128×32 |
| TM020GDH42 | Tianma | 2.0 | 176×220 |
| TM020HBH03 | Tianma | 2.0 | 240×320 |
| ACX450AKN-7 | JDI | 5.0 | 1080×1920 |
| AMEJ006 | Samsung | 2.8 | 240×400 |
| CT022TN15 | Innolux | 2.2 | 176×220 |
| H546TAN01.0 | AUO | 5.5 | 720×1280 |
| HVA42WV1-M00 | HYDIS | 4.2 | 480×800 |
| LPM055A138A | JDI | 5.5 | 1440×2560 |
| LS043K1SX02 | SHARP | 4.3 | 720×1280 |
| PJ028MA-01A | Innolux | 2.8 | 240×320 |
| TM030LBHT1 | Tianma | 3.0 | 240×400 |
| TX10D121VM0AAA | JDI | 4.0 | 480×800 |
