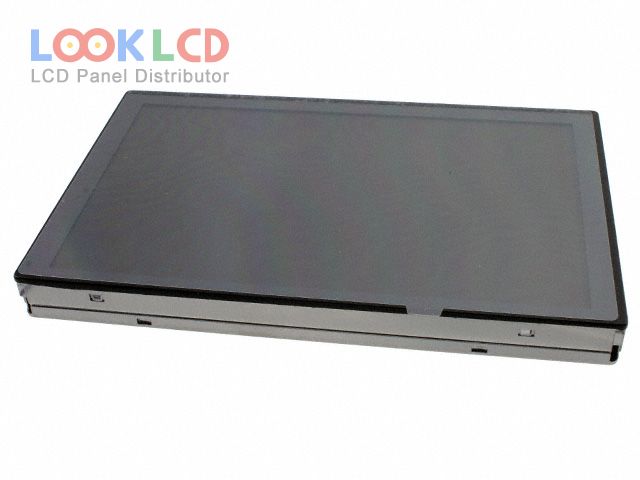

| PartNumber | LQ065Y5DZ01 |
| Značka | SHARP |
| Velikost | 6.5 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 675 |
| CR | 1700:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ065Y5DZ01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 6.5 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | ASV, Normally Black, Transmissive |
| aktivní oblast | 141.6×84.96 mm |
| obrys | 161.8×100.6×17.5 mm |
| povrch | |
| jas | 675 cd/m² (Typ.) |
| kontrastní poměr | 1700:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 15/5 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | Parallel RGB (1 ch, 4-bit), 68 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | CNS |
| LQ065T5AR05 | SHARP | 6.5 | 400×234 |
| LQ065T5BR08 | SHARP | 6.5 | 400×240 |
| LQ065T5DG05 | SHARP | 6.5 | 480×234 |
| LQ065T5DG30 | SHARP | 6.5 | 400×240 |
| LQ065T9BR51U | SHARP | 6.5 | 400×240 |
| LQ065T9BR54U | SHARP | 6.5 | 400×240 |
| LQ065T9DR51U | SHARP | 6.5 | 400×240 |
| LQ065T9DR52U | SHARP | 6.5 | 400×240 |
| LQ065Y5DG01 | SHARP | 6.5 | 800×480 |
| LQ065Y5DZ01 | SHARP | 6.5 | 800×480 |
| C070VVN03.0 | AUO | 7.0 | 800×480 |
| HSD070IDW1-D00 | HannStar | 7.0 | 800×480 |
| LA058WQ1-SD01 | LG Display | 5.8 | 400×240 |
| LB070WV3-SD02 | LG Display | 7.0 | 800×480 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| LQ088H9DZ03 | SHARP | 8.8 | 640×240 |
| LTA065B0F0F | TOSHIBA | 6.5 | 800×480 |
| M050SWN1 R2 | IVO | 5.0 | 480×234 |
| PM100WX2 | E Ink | 10.0 | 800×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
