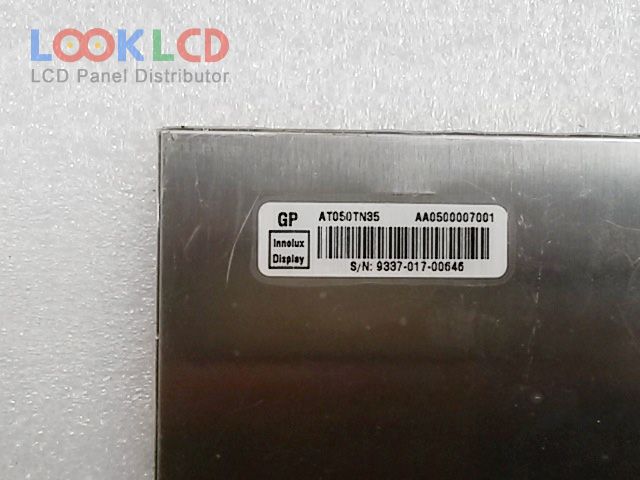

| PartNumber | AT050TN35 |
| Značka | Innolux |
| Velikost | 5.0 |
| aplikace | CNS |
| Rozlišení | 480×272 |
| Složení | LCM |
| Jas | 500 |
| CR | 500:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | CHIMEI INNOLUX |
| panelový model | AT050TN35 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.0 inch |
| rozlišení | 480(RGB)×272 , WQVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 110.88×62.832 mm |
| obrys | 120.7×75.8×3.3 mm |
| povrch | Antiglare |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193150% |
| Doba odezvy | 10/15 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 6S2PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit) + SPI, 67 pins |
| vstupní napětí | 3.3/1.8V (Typ.)(AVDD/DVDD) |
| aplikace | CNS |
| AT050TN22 V.1 | Innolux | 5.0 | 640×480 |
| AT050TN33 | Innolux | 5.0 | 480×272 |
| AT050TN33 V.1 | Innolux | 5.0 | 480×272 |
| AT050TN35 | Innolux | 5.0 | 480×272 |
| AT050TN43 V.1 | Innolux | 5.0 | 800×480 |
| AT056TN03 | Innolux | 5.6 | 320×234 |
| AT056TN04 V.6 | Innolux | 5.6 | 320×234 |
| AT056TN52 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.2 | Innolux | 5.6 | 640×480 |
| AT056TN53 V.1 | Innolux | 5.6 | 640×480 |
| A070FW01 | AUO | 7.0 | 480×234 |
| C070FW01 V0 | AUO | 7.0 | 480×234 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| LAJ080W001A | TPO | 8.0 | 800×480 |
| LQ038Q5DR01 | SHARP | 3.8 | 320×240 |
| LQ070Y5DG12 | SHARP | 7.0 | 800×480 |
| PA050DS7N1 | E Ink | 5.0 | 320×234 |
| PW080XU4 | E Ink | 8.0 | 480×220 |
| TM062RDH03 | Tianma | 6.2 | 800×480 |
| YX090DKN01.0 | SEBO | 9.0 | 1280×720 |
