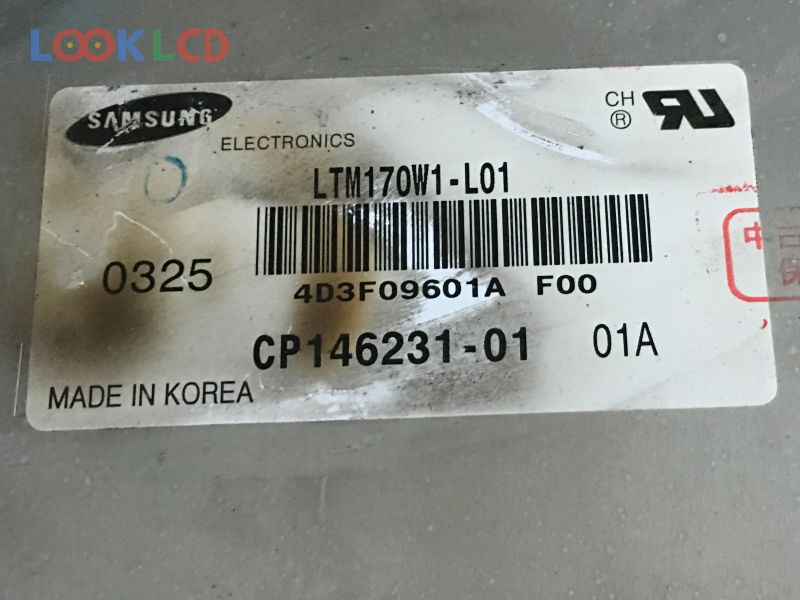

| PartNumber | LTM170W1-L01 |
| Značka | Samsung |
| Velikost | 17.0 |
| aplikace | DMPC |
| Rozlišení | 1280×768 |
| Složení | LCM |
| Jas | 450 |
| CR | 400:1 |
| Barvy | 16.2M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTM170W1-L01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 17.0 inch |
| rozlišení | 1280(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 370.56×222.336 mm |
| obrys | 404×258×16.7 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC) |
| Doba odezvy | 5/20 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | DMPC |
