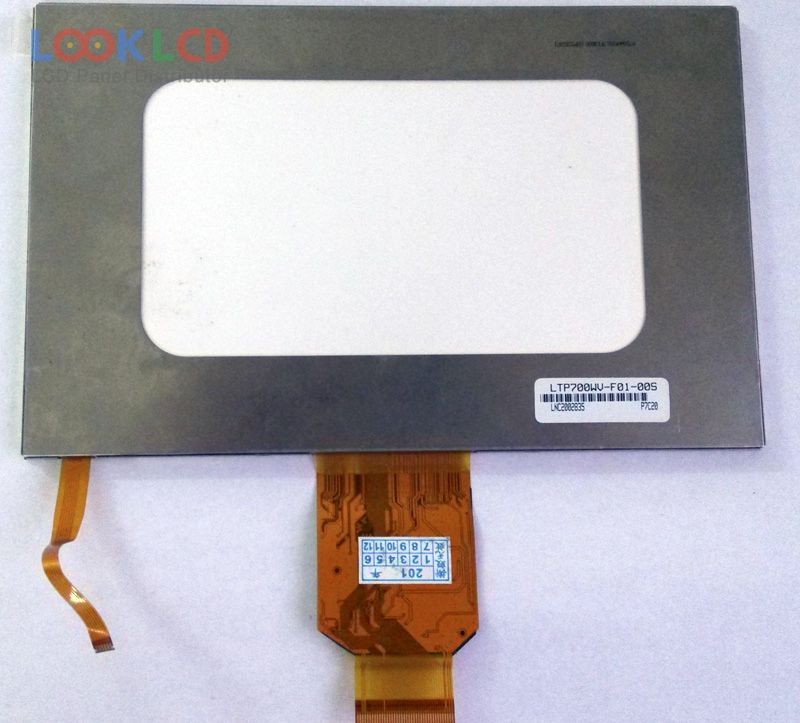

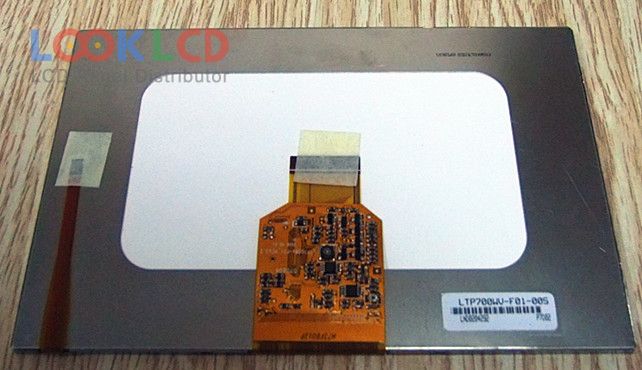

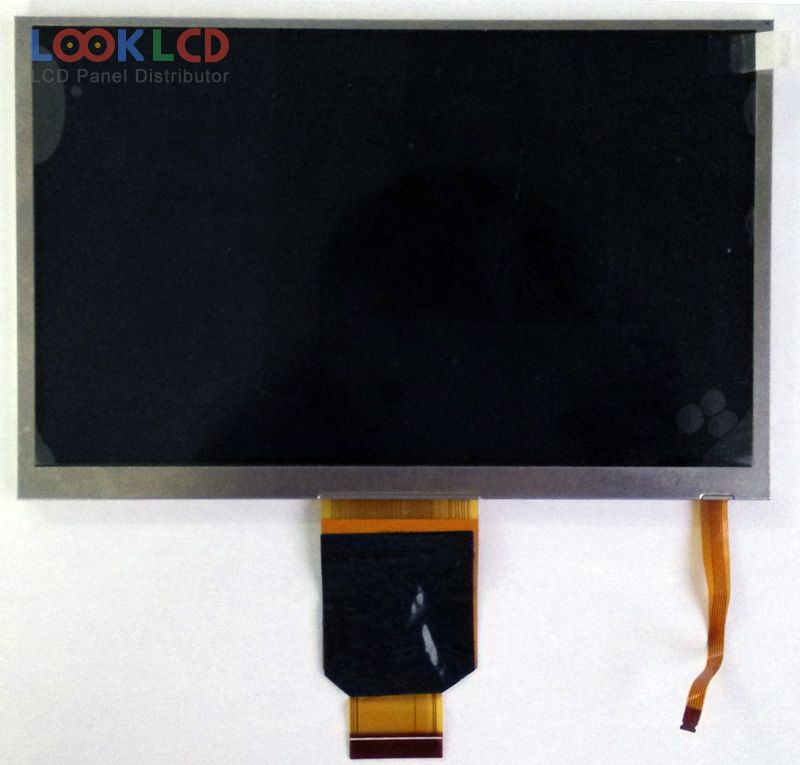

| PartNumber | LTP700WV-F01 |
| Značka | Samsung |
| Velikost | 7.0 |
| aplikace | MP4 |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 350 |
| CR | 300:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SAMSUNG |
| panelový model | LTP700WV-F01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800×480(RGB) , WVGA |
| zobrazovací mód | TN, Normally White, TMR |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 163.2×104×3.6 mm |
| povrch | |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 300 : 1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 22.7 (Typ.)(Tr+Td) |
| úhel pohledu | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 8S3PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.)(VCC) |
| rohs: | |
| aplikace | MP4 |
| A070VW08 V2 | AUO | 7.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| B070ATN02.0 | AUO | 7.0 | 600×1024 |
| CLAA070MA0ACW | CPT | 7.0 | 800×600 |
| DLC0700BZG-7 | Other | 7.0 | 800×480 |
| HV070WSA-100 | BOE | 7.0 | 1024×600 |
| LTL070NL01-801 | Samsung | 7.0 | 1024×600 |
| LTP700WV-F01 | Samsung | 7.0 | 800×480 |
| LTP700WV-F02 | Samsung | 7.0 | 800×480 |
| Q07021-701 | Innolux | 7.0 | 800×600 |
| AT070TN83 | Innolux | 7.0 | 800×480 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| EJ070NA-01F | Innolux | 7.0 | 1024×600 |
| HSD089IFW1-A00 | HannStar | 8.9 | 1024×600 |
| LB070WV4-TD02 | LG Display | 7.0 | 800×480 |
| LB070WV6-TD06 | LG Display | 7.0 | 800×480 |
| LMS700KF05 | Samsung | 7.0 | 800×480 |
| LTG430WQ-F02 | Samsung | 4.3 | 480×272 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
